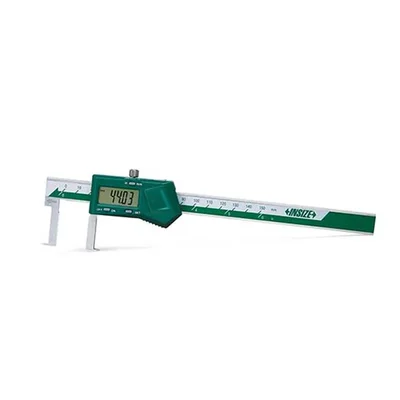

Insize 11-150mm Digital Inside Groove Caliper, 1520-150 Model

• Model No : 1520-150
• Measurement Range : 10.922 - 152.4 mm
• Resolution : 0.01 mm
• Material : Stainless Steel
• Power Supply : Battery CR2032
• Overall Length : 236 mm
• Display : LCD
• Accuracy : ±0.04 mm
• Lower Jaw Length : 41 mm

Features

• Specialized Jaws : Designed with narrow tips to fit into tight internal grooves.
• Auto Power Features : The unit automatically powers off after inactivity and wakes up instantly when you move the slider.
• Data Output : Includes a data interface port, allowing you to connect it to a computer for data logging.
• Function Buttons : Simple interface with On/Off, for setting a starting value

Applications

• Internal O-Ring & Snap-Ring Grooves: Measuring the exact diameter and width of grooves inside a cylinder to ensure seals fit perfectly.
• Hydraulic & Pneumatic Components: Checking the internal bore details of valves, cylinders, and manifolds.
• Automotive Engineering: Measuring piston pin clip grooves or internal bearing races.
• Aerospace Machining: Inspecting lightweight alloy housings where precision internal tolerances are critical.
• Maintenance & Repair (MRO): Identifying the correct replacement seal size for worn machinery when original specifications are unavailable.
