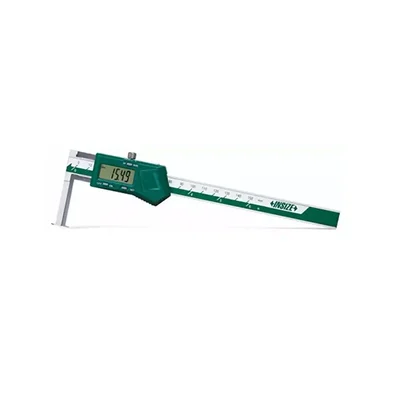

Insize 24-150mm Digital Inside Point Caliper, 1121-150A Model

• Model No : 1121-150A
• Measurement Range : 23.876 - 152.4 mm
• Resolution : 0.01 mm
• Material : Stainless Steel
• Power Supply : Battery CR2032
• Overall Length : 250 mm
• Display : LCD
• Accuracy : ±0.04 mm
• Lower Jaw Length : 28 mm
• Button Type : On/Off

Features

• Pointed Jaw Design : Equipped with narrow, pointed internal jaws designed to measure the diameter of grooves, small recesses and internal threads or hole-to-hole distances.
• Automatic Power Off: To conserve the CR2032 battery, the unit shuts down automatically after a period of inactivity.
• Data Connectivity: Features a data output port for SPC (Statistical Process Control)

Applications

• Small internal grooves: Reaching into V-shaped grooves where a flat jaw cannot seat properly.
• Center-to-center distances: Measuring the distance between two internal points or small holes.
• Tapered Bore Measurement: Finding the diameter at a specific depth of a tapered internal surface.
• Irregular Geometries: Measuring rough-cast internal surfaces or parts with non-parallel walls.
