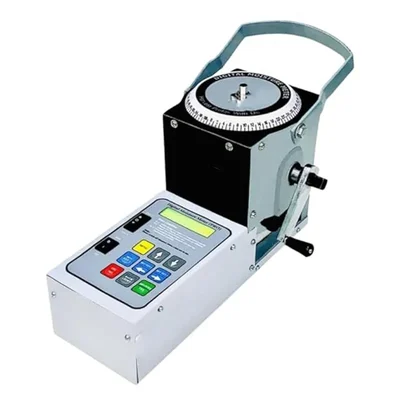

Shiv Agrologic Digital Universal Moisture Meter for All Type of Seeds and Food Grains

• Moisture measurement range: 3.5% to 40%.
• Accuracy: ±0.2%.
• Principle of measurement: Resistance.
• Display: Three seven-segment digital display.
• Power supply: Six 9V dry cells or 230V AC adapter.
• Temperature compensation: Automatic with PT-100 sensor.
• Data storage: Memory capacity for up to 200 readings.
• Connectivity: Port for printer and PC interface.
• Weight: Around 22.5 kg without accessories.

Features

• Measures moisture content in the range of 3.5% to 40% with ±0.2% accuracy.
• Automatic temperature compensation with temperature sensor for reliable readings.
• Large alphanumeric LCD display for clear data visualization.
• Data logging capability with memory to store up to 200 readings.
• RS-232 port for connectivity with printers and computers to export data.
• Calibrated for over 60 different grains, pulses, oilseeds, and vegetable seeds.
• Battery-operated or AC mains powered for flexible operation.
• Membrane keypad with programmable hot keys and averaging function for multiple readings.
• Error detection and low battery indication for consistent performance.

Applications

• Seed processing units for precise moisture quality assessment.
• Grain storage warehouses to monitor and maintain ideal moisture levels to prevent spoilage.
• Agricultural research laboratories for detailed analysis and quality control.
• Procurement centers and mandis for verifying grain moisture content during trade.
• On-field testing by farmers and quality inspectors for rapid moisture assessment to guide harvest and storage decisions.

Usage

• Turn on the device and select the appropriate crop type or variety using the selection buttons.
• Pour a representative sample of grains or seeds into the sample chamber or place the sample in the probe area depending on the model.
• Wait a few seconds until the moisture content reading stabilizes and is displayed on the digital screen.
• Record the moisture content displayed. For accuracy, repeat measurements with multiple samples and take average readings.
• Compare the moisture content readings against recommended thresholds for storage or sale decisions.
• After use, turn off the device to save battery; some models have automatic shutoff features.
• Periodically calibrate the moisture meter according to the manual to maintain measurement precision.
