Brand: Kirloskar

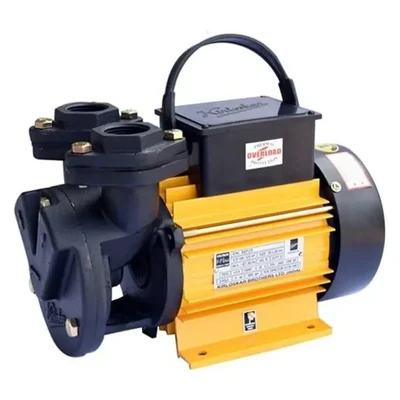

Kirloskar V Flow-1 1HP Monoblock Pump(1 Year Warranty)
SKU: DK-KP-2116
Regular Price : ₹12450
Offer Price : ₹11100 (Including GST)
Get extra ₹333 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
Kirloskar V-Flow 1 HP Single Phase Monoblock Pump
2560-140 LPH Discharge Rate,
1 Year Warranty
Description
Kirloskar V Flow-1 1HP Monoblock Pump(1 Year Warranty)
Description :
- A Monoblock Pump is a mechanical device in which a common shaft contains the rotating parts. Owing to this, during the transmission from motor to shaft, there is less loss of energy.
Features :
- A motor can withstand wide voltage fluctuation from 180- 240 Volts.
- Unique Motor design- capacitor Start & run, Eliminating centrifugal Switch.
- 'B' class of insulation.
- Specially processed steel shaft for corrosion resistance & durability.
- Fitted with high quality & long life mechanical seal.
- Fitted with Thermal Overload Protector (TOP) for the safety of Motor.
- Both Side Shielded ball bearing, no need for external lubrication.
- Sturdy & rigid construction.
- Pump casing made of closed grains cast iron of high tensile strength and has a very smooth surface finish resulting in low friction losses.
- A brass impeller is used to give trouble-free services.
- Applications:
- Water supply for domestic use in Bungalows, Apartments, Hotels, Farmhouses etc.
- Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens.
Specification:
- Model No. : V-Flow-1
- Product Type : Monoblock Pump
- Brand : Kirloskar
- Power : 180-240 V AC Supply
- Electricity Connection : Single Phase
- Motor Power : 1 HP (0.75 kW)
- Current : 7.6 Amps
- Head Range : 6-50 m
- Suction x Delivery Size : 25 x 25 mm
- Discharge Range : 2560-140LPH
- Weight : 10 Kg
Materials of Construction :
- Impeller : Brass
- Pump shaft : Carbon steel
- Delivery Casing : Cast Iron
- Mounting casing : Cast Iron
- Motor Body : Aluminium
- Cover NDE : Cast Iron
- Mechanical Seal: Carbon-ceramic
Applications :
- Water Supply to Overhead Tanks
- Gardens/Fountains
- Feed Water to RO
- Domestic Water Supply
- Construction Site
- Home Pressure Boosting
- Car Washing
- Lawn Sprinklers
Warranty :
- 1 year warranty on manufacturing defects.
