Brand : DONGCHENG

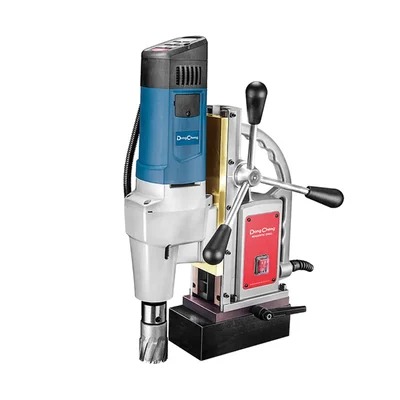

Dongcheng 23-50mm 1600 Watt Triple Function System With F/R Function Magnetic Drill With Accessories (DJC02-23)
SKU : TI-D2-43523
MRP : ₹52000
₹43490
16% OFF!
-
1
+
Get Extra ₹652 OFF on Prepaid Orders
Delivery By: Aug 28 - Aug 30
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Dongcheng 23-50mm 1600 Watt Magnetic Drill With Accessories
Triple Function System With F/R Function
Country of origin: China
Specification
  • Brand: DONGCHENG
  • Power : 1600 w
  • Weight (Approx.) : 24 kg
  • Drilling Capacity : 50 mm
  • Model : DJC02-23
  • Rated Voltage : 220-240V
  • Rated Frequency : 50-60Hz
  • Max. Drilling Capacity : 23mm (Twist Drill Bit), 50mm (Core Drill Bit)
  • Max. Tapping Capacity : M6-M20
  • Magnetism : 1500N
  • No-load Speed : 130-260 RPM (Step 1) /260-520 RPM (Step 2)
  • Max. Stroke : 220mm
  • Connector : MT3 Shank
  • Triple Function : Twist Drill, Core Drill & Tapping
  • Forward/Reverse Function : Yes
Description
  • Dongcheng Magnetic Drill Machine DJC02-23 commonly known as adsorption drill, it comes with an electromagnet, can be adsorbed on the steel parts of the horizontal, side, top and curved (need to add spacers between the electromagnet and the surface) and drilling on.

Features

 :
  • Triple function: Twist Drill, Core Drill and Tapping
  • Soft start, 2-speed mechanical speed control
  • Electronic constant speed control, maintains constant speed under load
  • Electronic overload protection, safety release clutch.

Accessories

 :
  • Joint Assembly for MT3 Core
  • Wedge Iron
  • Safety Belt
  • Open-End Wrench
  • Hex Wrench (2pcs)
  • Chuck Wrench
  • Drill Chuck
  • Extension Rod for Morse Taper Bush with Tang
  • Center Pin
  • Long Center Pin
  • Short Center Pin
  • Morse Reduction Sleeve
  • Oiler Assembly
  • Carbon Brush
  • Plastic Case
