Brand: Generic ( Made in India )

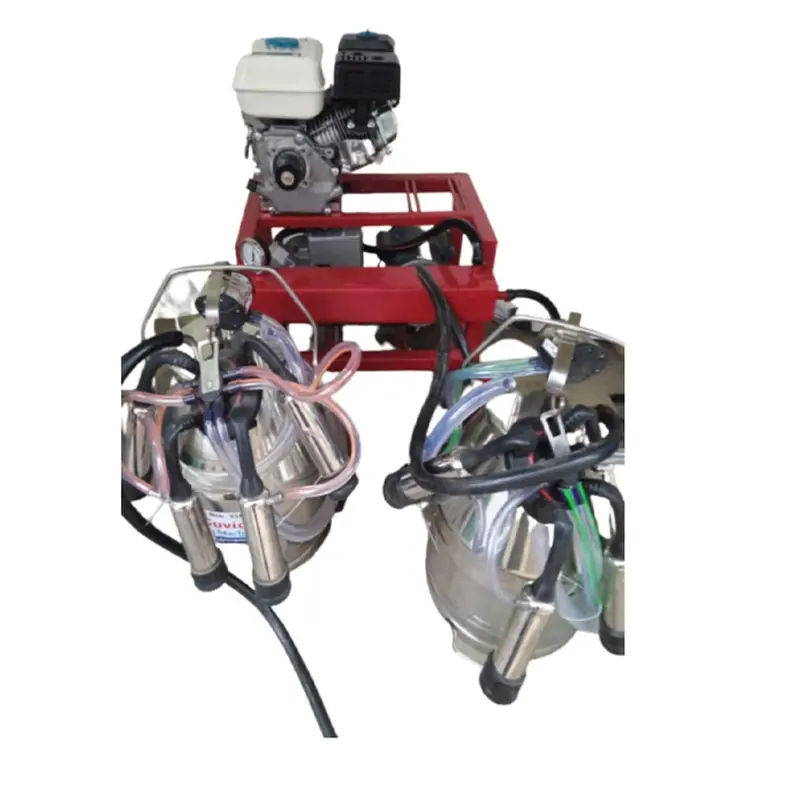

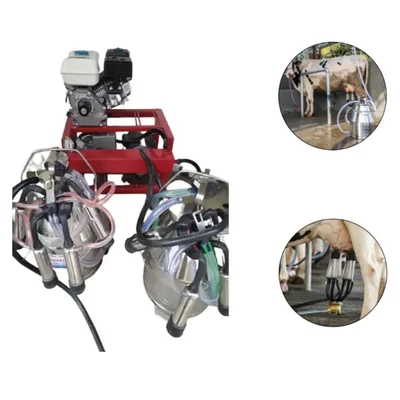

Double Bucket Milking Machine with 5.5 HP Engine and 1.5 HP Motor
SKU: CM-PB-21969
1776 people have viewed this recently
Delivery By: Jun 24 - Jun 26
MRP : ₹62500 ₹61400
2% OFF!
1776 people have viewed this recently Delivery By: Jun 24 - Jun 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹61400 (Including GST)
MRP : ₹62500
2% OFF!
Get Extra ₹921 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Double Bucket Milking Machine
3 to 5 mins for milking cow
6 to 8 mins for milking buffalo
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 134 kg
- Material : Stainless Steel
- Engine Power : 5.5 HP
- Motor Power : 1.5 HP, Single Phase
- Engine Type : 1 cylinder, 4 stroke, OHV, forced air cooled
- Starter Type : Recoil start
- Fuel : Petrol
- Fuel Tank Capacity : 0.45/0.8 L
- Fuel Consumption : 1 liter per hour
- Belt Pulley : Yes
- Storage Capacity : 25 liters x 2
- Time required for milking cow : 3-5 min
- Time required for milking buffalo : 6-8 min
- Productivity : 10-30 cows per hour
- Pulse Rate : 60 per minute
- Vacuum Pump : 500 LPM
- Cleaning : Boiling Water
Note : The color of the product may vary.
Description

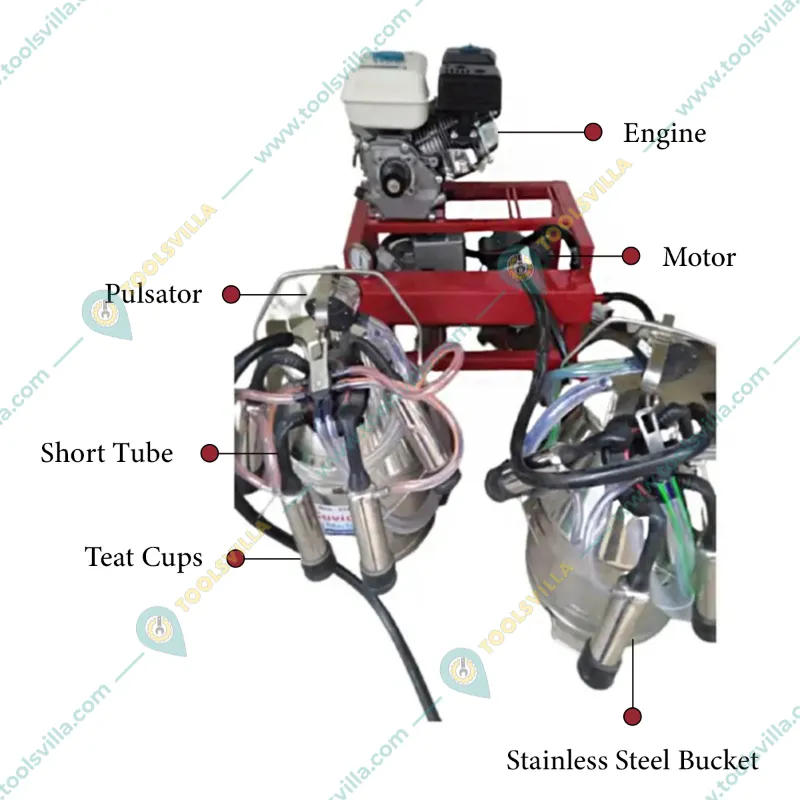

The Double Bucket Milking Machine is a device designed to extract milk from cows and buffaloes. This machine automates the process of milking livestock and, at the same time, reduces both the time and effort involved in milking them. The machine consists of teat cups that are attached to animal's udders, a vacuum system which creates suction to extract milk, and a and series of pipes which connect the milking cluster with the milking bucket. The machine is equipped with a 5.5 HP engine and 1.5 HP motor and the milking buckets have a storage capacity of 25 litres each. This machine can efficiently milk a cow in 3-5 minutes and a buffalo in 6-8 minutes.
Features
:- Dual Milking Capability : The double bucket design allows for simultaneous milking of two cows, which significantly increases productivity. This feature is particularly beneficial for farmers with multiple cattle
- User-Friendly Design : The machine is designed to be easy to operate, making it accessible even for those who may not have extensive experience with dairy equipment. The user-friendly interface reduces the learning curve for new users.
- Hygienic Design : Constructed from stainless steel and equipped with smooth surfaces, the machine ensures optimal hygiene, minimizing the risk of contamination during the milking process.
Applications
:- Commercial Dairy Farming : Milking machines are primarily used in commercial dairy farms to increase efficiency and productivity. They allow for the rapid milking of large numbers of cows, significantly reducing labor costs and time compared to traditional hand milking.
- Improved Milk Quality : The use of milking machines helps maintain better hygiene standards during the milking process. Automated systems minimize human contact with milk, reducing the risk of contamination and ensuring higher quality milk production.
- Small-Scale Dairy Operations : While primarily associated with large-scale operations, smaller farms also benefit from portable or smaller capacity milking machines that allow them to enhance their productivity without significant investment in infrastructure.
Toolsvilla deals with various types of Dairy Equipment. Wide varieties of Milking Machines are used for milking cows & buffaloes.
Usage
:Step 1 : Preparing for Milking
- Clean the Milking Area : Sanitize the Milking area ensure the milking area is clean and sanitary to prevent contamination of the milk.
- Prepare the Equipment : Check the milking machine for any signs of wear and tear. Make sure all components are clean and functioning properly.
Step 2 : Setting Up the Milking Machine
- Connect the Vacuum Pump : Plug into a power source and check that all connections are secure.
- Test the Vacuum : Before attaching the teat cups, test the vacuum system to ensure it is functioning correctly; there should be adequate suction.
- Adjust the Milking Pulsator : Set the pulsator rate according to the manufacturer's instructions.
Step 3 : Milking Process
- Position the Teat Cups : Guide each teat cup onto the respective teats gently and securely. Ensure that they are aligned properly to avoid any discomfort to the animal.
- Check for Proper Seal : Observe if the tea cups are holding their position without excessive pressure. A good seal will maintain the right suction.
- Observe Milk Flow : As the milking progresses, monitor the flow of milk through the milk line. A steady flow indicates that the suction is working effectively.
- Watch for Discomfort : Keep an eye on the animal for signs of discomfort. If the animal appears stressed or agitated, stop the process and reassess the machine setup.
- Signs of Completion : Detach the cups once the milk flow significantly slows or stops. This typically indicates that the udder is empty.
- Release Vacuum : Turn off the vacuum pump before removing the teat cups to avoid discomfort or injury to the animal.
Step 4 : Maintenance of Milking Machine
- Daily Cleaning : After each milking session, dismantle and wash all components with warm water and a suitable detergent. Rinse thoroughly to remove any residues.
- Regular Inspection : Check for wear and tear, especially on rubber components such as gaskets and liners. Replace them as needed to prevent leaks and ensure proper function.
- Periodic Servicing : Schedule regular professional maintenance checks on your milking machine to keep it in optimal condition.
