Brand: Generic ( Made in India )

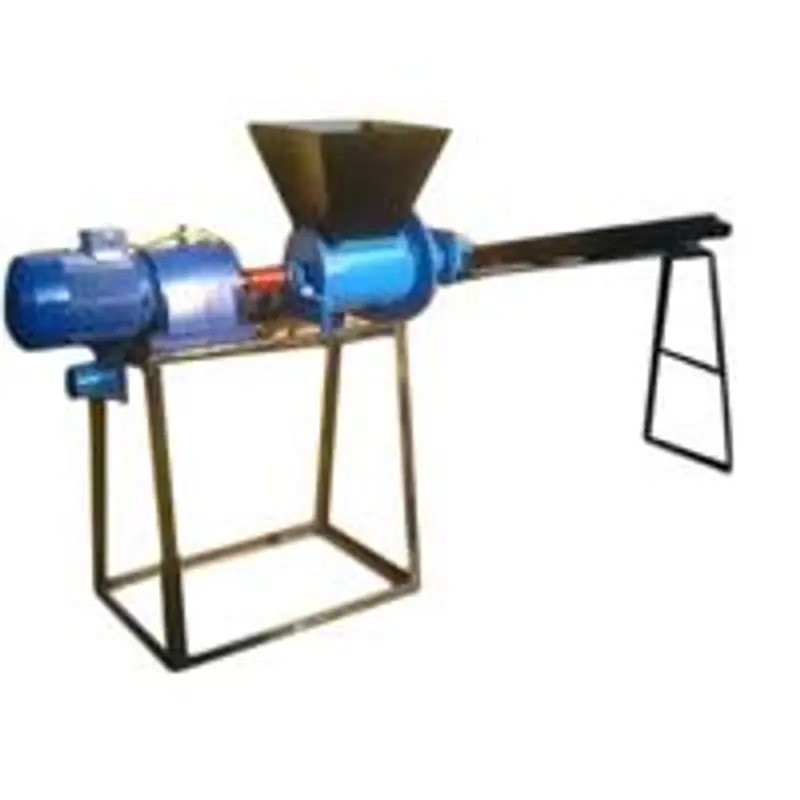

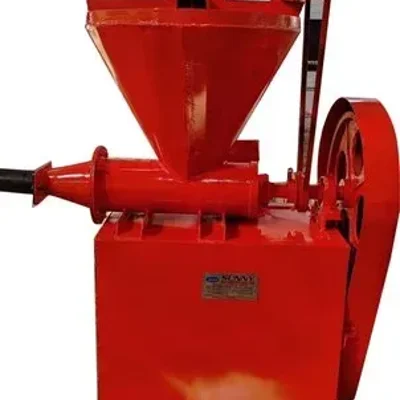

3 HP Single Phase Automatic Cow Dung Log Making Machine With 500 Kg/hr Capacity
SKU: SS-20200579
525 people have viewed this recently
Estimated Delivery By: Oct 11 - Oct 13
MRP : ₹99999 ₹74999
25% OFF!
525 people have viewed this recently Estimated Delivery By: Oct 11 - Oct 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹74999 (Including GST)
MRP : ₹99999
25% OFF!
Get Extra ₹1,125 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Automatic Cow Dung Log Making Machine
With 500 Kg/hr Output Capacity
With 3 HP Single Phase Motor
With 500 Kg/hr Output Capacity
With 3 HP Single Phase Motor
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 300 kg
- Base frame Angle 40x40x5 mm.
- Cow Dung Bucket : Height 20inch, width 24x24inch
- Pipe Inner :Diameter 6inch, length 460mm, Warm width 5inch, sheet Thickness 6mm
- Tempered Motion Shaft Length 1040 mm Flendge Outer Diameter 240 mm, Thickness 6mm.
- Movable Trolley Wheel size 8x3inch
- Rubber Wheel Bearing FC - 209,
- P-209 U.C Bearing Pulley 20x2inch,
- B class 20x12inch,
- B class 5x2inch,
- B class 3x2inch,
- B class CAST IRON-Gear Box Shaft Length 17inch(435 mm) Two 8inch warm
- Material : Mild Steel
Description
A cow dung log making machine compresses raw cow dung—often mixed with agricultural waste or sawdust—into dense, uniform cylindrical or hollow logs used for eco-friendly fuel and cremation.
Usage
:- Feeding: Two to three days old cow dung with about 40% moisture is put into the hopper.
- Compression: A screw conveyor or hydraulic press pushes and squeezes the material tightly.
- Extrusion: The mixture is pushed through a shaped die to form solid or hollow logs.
- Drying: The wet logs are sun-dried for two to three days before burning.
