Brand: Krishna

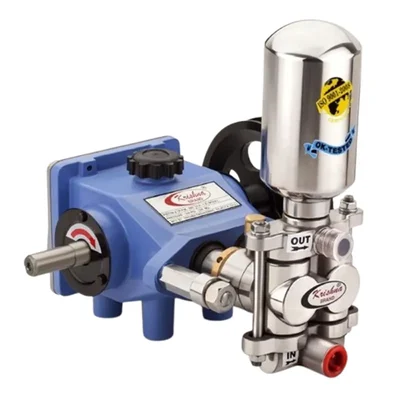

Krishna 2 HP 0-500 PSI Duplex Piston HTP Pump, 1440 RPM (KE-S2-24)
SKU: TI-K2-10614
₹10210 (Including GST)
MRP : ₹14290
Get extra ₹153 Discount (On Checkout)
Delivery By: May 6 - May 8
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Duplex Piston HTP Pump
1440 RPM Electric Motor
600 PSI (40 Kg) Maximum Pressure
Country of origin: India
Description
A 2 HP Duplex Piston HTP (High-Pressure Triplex) Pump is a type of reciprocating pump powered by a 2 horsepower motor and featuring a duplex design, meaning it has two pistons or plungers that work alternately to create a high-pressure flow of liquid
Features
:- Duplex Design: The pump utilizes two pistons or plungers. As one piston moves forward to discharge fluid at high pressure, the other simultaneously moves backward to draw fluid into its chamber.
- Piston (or Plunger) Pump: This type of positive displacement pump uses the reciprocating motion of pistons (or plungers) within cylinders to displace the fluid. The backward movement creates suction, drawing fluid in through an inlet valve, and the forward movement pushes the fluid out through an outlet valve at high pressure.
- 2 HP Power: The pump is driven by a 2 horsepower electric motor, which provides the necessary power to operate the pistons and generate the required high pressure and flow rate for its intended applications
Specification
:- Brand: Krishna
- Weight (Approx.) : 20 kg
- Model Number : KE-S2-24
- Number of Piston : 2
- Normal Working Pressure : 0-500 PSI(35Kg./cm²)
- Maximum Pressure : 600 PSI (40 Kg)
- Pump RPM : 600 RPM
- Suction Capacity : 24 LPM
- Motor Power : 2 HP
- No-Load Speed : 1440 RPM
- V-Belt Size : B-34
- Main Body Material : Cast Iron
- Head Material : Cast Iron
- Piston Material : Stainless Steel
- NRV Material : Stainless Steel
- Stroke Length : 20 mm
- Piston Diameter : 30 mm
Warranty :Pump warranty against manufacturing problem
Accessories
:- Pump stand
- Pump pulley
- Motor pulley
- Piston ring set
- Nozzle set
- 1-Set Tools kit
Applications
:Used in :
- Industrial purpose
- Auto two & four wheel workshop
- Mineral water and soda water plants
- Boiler and steam engines
- State transport and workshop
- Railway workshop and cleaning yards
- Airport and ship yards
