Brand: Generic (Imported)

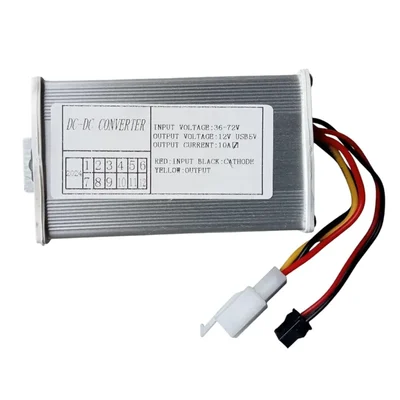

E-Trendo 12V 10A 48-72V Input DC Converter USB 5V Output 12V-DC-USB5V-10A-Converter
SKU: TI-E1-62924
Delivery By: Feb 25 - Feb 27
MRP : ₹650 ₹511
21% OFF!
Delivery By: Feb 25 - Feb 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹511 (Including GST)
MRP : ₹650
21% OFF!
Get Extra ₹8 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
High-efficiency 48-72V to 12V 10A DC converter with USB 5V for EV scooty/e-bike accessories. Aluminum body, IP67 waterproof, 10A fuse protection, 3-wire easy install.
Country of origin: China
Specifications
- Brand: Generic (Imported)
- Model Number: 12V-DC-USB5V-10A-Converter
- Model Name: 12V, 10A DC Converter With USB 5V-DC
- Item Dimensions (LxWxH): 11.5 x 5 x 3.5 cm
- Item Weight: 110 g
- Input Voltage: DC 48V–72V
- Output Voltage/Current: 12V-10A DC, USB 5V-DC
- Material: Aluminum Body
- Protection: Built-in 10A Fuse, IP67 Waterproof
- Wiring: 3 Color-Coded Wires (Red, Black, Yellow)
- Net Quantity: 1 Piece
- Generic Name: 12VDC10A, USB-5V DC Converter
Description
The E-Trendo 12V 10A DC Converter powers several accessories at once by converting 48V–72V DC input from electric vehicles into a steady 12V 10A output plus USB 5V. IP67 waterproofing resists dust, water, and vibrations on harsh roads and has a quality aluminum body for the best heat dissipation. A built-in 10A fuse protects against overcurrent and short circuits, and sophisticated voltage management provides steady, unfluctuating power. The three color-coded cables (Red: Input+, Black: Ground, and Yellow: Output 12V) allow for easy plug-and-play installation for electric scooters, e-bikes, e-rickshaws, and e-carts. It is small, measuring 11.5 x 5 x 3.5 cm and weighing 110g.
Features
:- Broad Input Range: Compatible with a variety of EV battery systems, it takes 48V, 60V, and 72V DC inputs.
- Strong Output: 12V 10A DC with USB 5V-DC allows GPS, audio players, headlights, horns, indicators, and mobile charging.
- 3-Wire Connection: Color-coded for safe, tool-free installation (Red: 48–72V Input, Black: Ground, Yellow: 12V Output).
- 10A Fuse Protection: Internal fuses protect devices against overloads, shorts, and overcurrents.
- IP67 Waterproof: Rain, splashes, and road vibrations are all tolerated by the water-resistant, dust-tight aluminum casing.
- High Efficiency: Advanced regulation prolongs component life, reduces heat, and maintains steady output.
Applications
:- LED lights, horns, and indicators are powered by electric scooters.
- E-bikes with mobile chargers, music players, and GPS trackers.
- E-carts and e-rickshaws for several 12V accessories at once.
- Unstable power sources in Okinawa and Hero Electric models are being replaced by EV upgrades.
Usage
:- For safety, disconnect the negative connection of the EV battery.
- Attach the black wire to the ground or negative and the red wire to the 48–72V positive.
- Use USB for 5V charging and connect the yellow wire to the 12V accessory positive.
- Use ties or screws to secure the converter in a dry, ventilated area of the EV frame.
- Test: Check the fuse for overload and use a voltmeter to confirm a steady 12V output.
- Maintain: Check the wires every month and replace the fuse if it blows.
