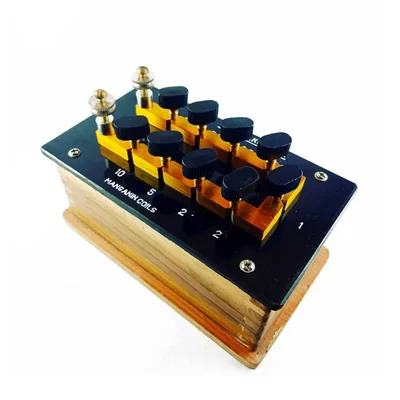

Reliant Lab Resistance Box Plug Type 0.1-500 Ω & 1-5000 Ω for High Sensitivity Galvanometer Tests

Brand: Reliant Lab

Reliant Lab Resistance Box Plug Type 0.1-500 Ω & 1-5000 Ω for High Sensitivity Galvanometer Tests

Name: Reliant Lab Resistance Box Plug Type 0.1-500 Ω & 1-5000 Ω for High Sensitivity Galvanometer Tests
Brand: Reliant Lab
SKU: TB-RE-68277
Price: 2699 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TB-RE-68277

MRP : ₹3799 ₹2699

29% OFF!

Get Extra ₹40 OFF on Prepaid Orders

Estimated Delivery By: Apr 16 - Apr 18

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹2699 (Including GST)

MRP : ₹3799

29% OFF!

Get Extra ₹40 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Reliant Lab Resistance B ox Plug Type 0.1-500 Ω & 1-5000 Ω

For High Sensitivity Galvanometer Tests

Country of origin: India

Brand: Reliant Lab

Block Material : Brass
Block Shape : Rectangular

The Reliant Lab Resistance Box (Plug Type) is a high precision electrical instrument engineered for advanced laboratory measurements and circuit analysis. The device operates on the Short Circuit principle heavy, tapered brass plugs are inserted into CNC machined sockets between thick brass blocks. When a plug is seated, the current bypasses the resistor when removed, the current is forced through a precision wound Manganin or Constantan coil housed beneath the ebonite plate. Enclosed in a seasoned teak wood case, these boxes offer superior stability and accuracy for sensitive bridge circuits.

Features

Non Inductive Winding: Coils are wound using a double back non inductive technique to cancel self-inductance, making the box highly accurate for both DC and low frequency AC applications.
High Insulation Ebonite Top: The 15mm thick high grade ebonite plate provides exceptional surface resistivity, preventing current leakage and maintaining high measurement precision in all environments.
Heavy Duty Brass Blocks: Features thick, high conductivity brass blocks that provide a robust electrical path and minimize contact resistance at the plug interfaces.
Seasoned Teak Wood Case: The assembly is housed in a polished, seasoned teak-wood enclosure that protects the internal coils from dust, humidity, and mechanical shock.
