Brand: Lions

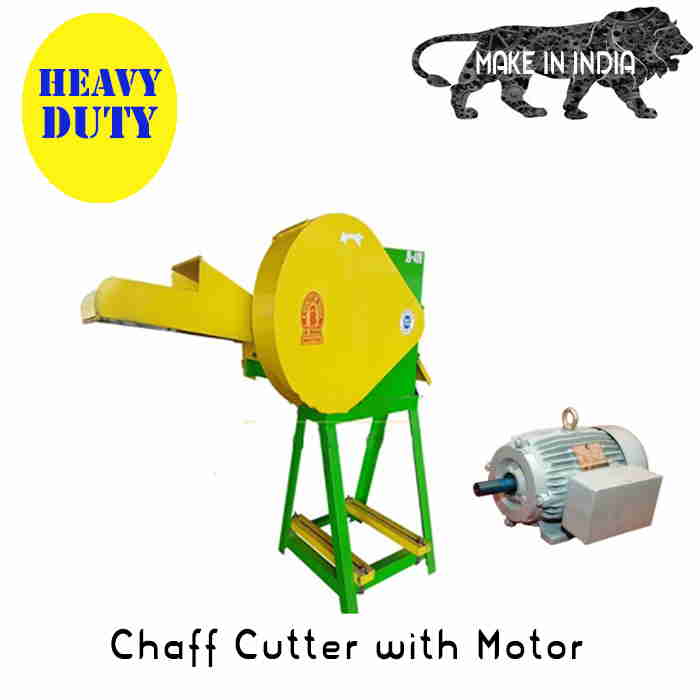

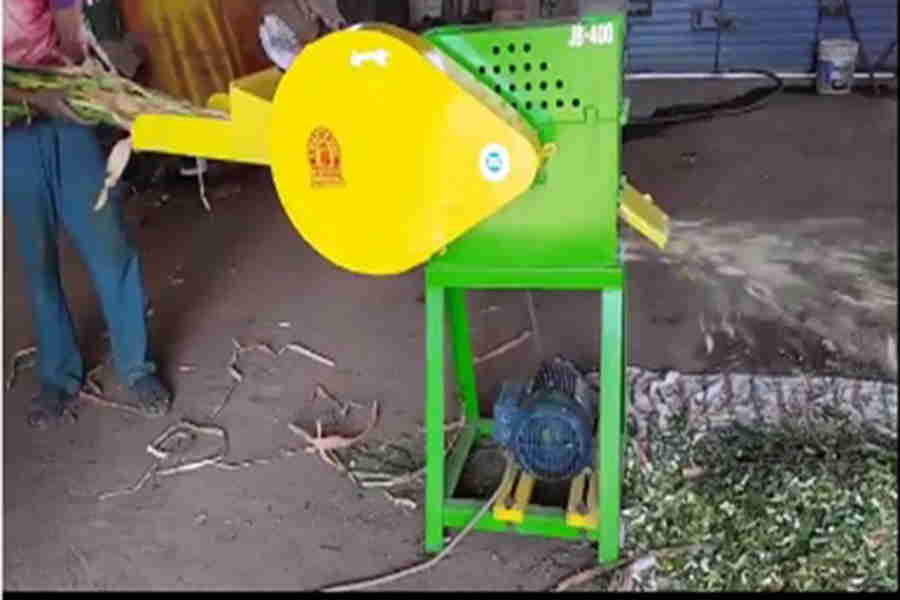

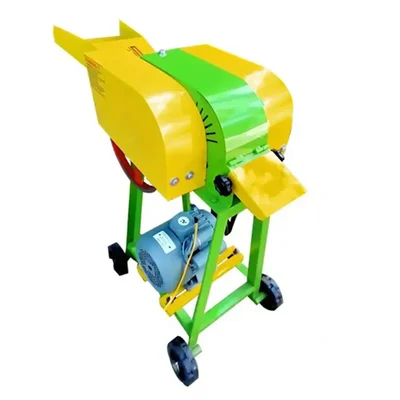

Heavy Duty Chaff Cutter/Grass Cutter Machine With 3 HP Motor CC-400, 500-1000 Kg/hr with 1 Year Warranty
SKU: SAC-CC-743
₹33955 (Including GST)
MRP : ₹34600
Get extra ₹509 Discount (On Checkout)
Delivery By: May 6 - May 8
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Chaff Cutter/Grass Cutter Machine With 3 HP Motor
Output Capacity : 500-1000 kg Per Hour
Single phase voltage
Country of origin: India
Description
Chaff Cutter/Grass Cutter Machine is a piece of equipment designed for cutting straw or hay into small pieces before mixing it with other forage and fed to cattle. This Chaff Cutter is a must have machine in agriculture and dairy farming because the primary use is to prepare fodder for animals by utilizing waste materials such as straw, hay, etc. This machine cuts the materials into fine pieces which is later on mixed with other forage making it suitable for consumption of cattle. This process aids the digestion of the animals and prevents them from rejecting any part of their meal. The machine is powered by a 3 HP electric motor which can achieve the cutting capacity mark of 500-1000 kilos per hour making it perfectly suitable for agricultural scenarios where there is a requirement of waste management and fodder preparation requirement at a higher scale.
Features
:- Efficient Cutting: Designed to finely chop straw and fodder, enhancing feed digestibility.
- Ease of Operation: User-friendly design facilitates simple handling and operation, reducing labor requirements.
- Durability: Constructed from high-quality materials to ensure longevity and withstand rigorous use.
- Compact Size: Space-saving design makes it suitable for both small farms and large agricultural operations.
Specification
:- Brand: Lions
- Material : Mild Steel
- Weight (Approx.) : 105 kg
- Model No: CC-400
- Motor Power : 3 HP
- Motor Speed : 1500 RPM
- Voltage : 220-240 V
- Motor Winding : Copper
- Phase : Single
- Output Capacity : 500-1000 kg Per Hour
Warranty Parts : The Motor is covered under warranty.
Note :
- Covered in Warranty : Manufacturing Defects
- Not Covered in Warranty : Physical Damage
- The video is for reference purposes only. The color of the product may vary.
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Fodder Preparation: One of the main applications of chaff cutters is in the preparation of fodder for livestock. By cutting or shredding plant materials such as straw, hay, or other agricultural residues into smaller pieces, these machines facilitate easier consumption and digestion by animals.
- Animal Nutrition: Chaff cutters contribute significantly to animal nutrition by reducing the particle size of fodder. Finely chopped or shredded fodder increases the surface area available for microbial activity in the rumen of ruminant animals. This enhancement leads to improved digestion and nutrient absorption, resulting in healthier animals, increased milk production in dairy cattle, and enhanced weight gain in meat-producing livestock.
- Cost Savings: By utilizing chaff cutters effectively, farmers can make optimal use of crop residues that might otherwise go to waste. This practice reduces reliance on additional feed purchases and minimizes feed wastage while maximizing resource value.
