Brand : HT

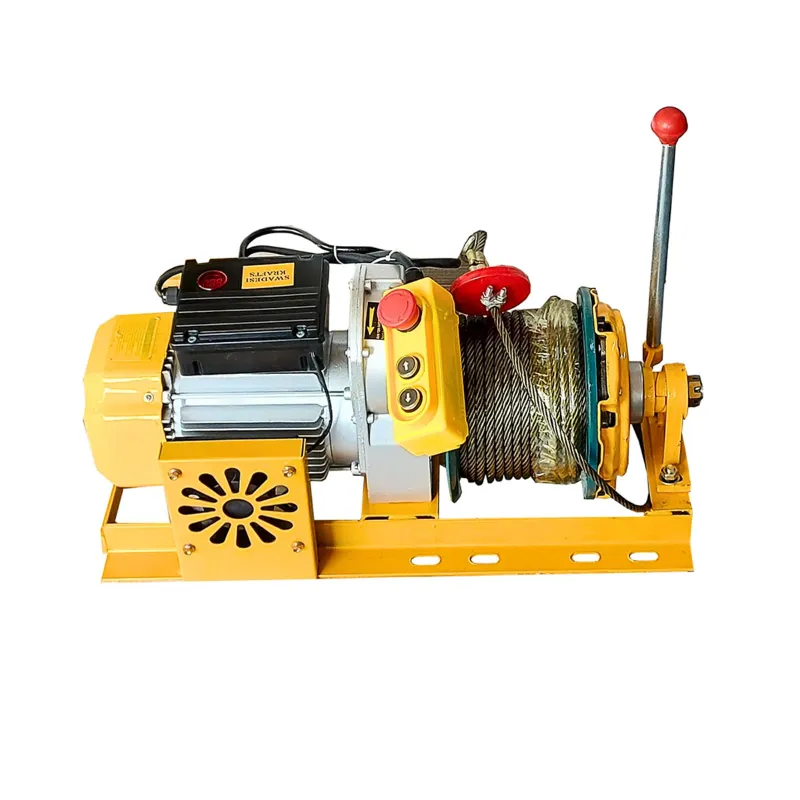

HT 500-1000 KG capacity 3 Hp Electric Clutch Winch With 8 MM & 50 meter Wire Rope
SKU : TI-KE-11611
MRP : ₹25000
₹17500
30% OFF!
-
1
+
5 people have bought this recently
Get Extra ₹263 OFF on Prepaid Orders
Delivery By: Jun 22 - Jun 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Electric Winch Machine
500-1000 kg load capacity
3 hp copper winding motor, 220 V
8mm, 50-meter wire rope
Country of origin: China
Specification
Description
HT 500-1000 KG Capacity 3 Hp Electric Clutch Winch With 8 MM & 50 meter Wire Rope

Description :
  • An electric clutch winch is a type of winch that utilizes an electric motor to drive the winch drum, allowing for the lifting or pulling of heavy loads. The key feature of an electric clutch winch is its clutch mechanism, which enables the operator to engage or disengage the winch drum from the motor easily.

Features :
  • Lifting
  • Pulling
  • Positioning Of Loads

Specifications :
  • Product Type : Electric Winch Machine
  • Brand : HT
  • Winding : 100% Copper
  • Clutch System : Yes
  • Motor power : 3 hp
  • Phase : Single
  • Voltage : 220 V
  • Wire Rope Length : 50 meter
  • Wire rope Thickness : 8 mm
  • Gear Lubrication : Grease
  • Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
  • Lifting Height Single Hook : 50 meters
  • Lifting Height Double Hook : 25 meters
  • Lifting speed (Single/Double -Wire Rope) : 7/14 meters per minute
  • Continuous Working Capacity : 2 hrs
Usage/Application :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.

In the Box :
  • 1 x Electric Clutch Winch
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter

Note :
  • The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
