Brand : HT

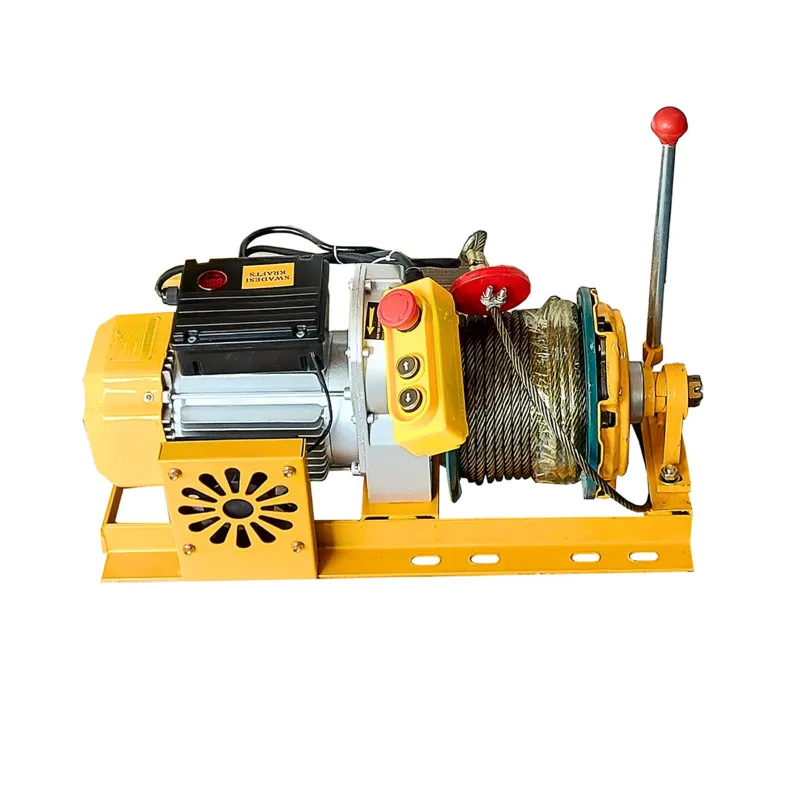

HT 500-1000 Kg 3 hp Long Drum Electric Clutch Winch With 8 MM, 50 Meter Wire Rope
SKU : TI-HD-11610
MRP : ₹24000
₹16999
29% OFF!
-
1
+
3 people have bought this recently
Get Extra ₹255 OFF on Prepaid Orders
Delivery By: Jun 26 - Jun 28
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Electric Winch Machine
500-1000 kg load capacity
3 hp copper winding motor, 220 V
8mm, 50-meter wire rope
Country of origin: China
Specification
Description
HT 500-1000 Kg 3 hp Long Drum Electric Clutch Winch With 8 MM, 50 Meter Wire Rope

Description :
  • Includes the best bearings, a heavy-duty motor clutch
  • For safety, there is a pre-installed travel switch and a time-saving clutch.

Features :
  • 2 cooling fans that stop the winch from overheating
  • This motor ensures smooth and reliable operation, enabling precise control during both lifting and pulling operations.
  • Clutch Mechanism : The inclusion of a clutch mechanism enhances the winching process, allowing operators to easily engage or disengage the winch as needed.

Specification :
  • Product Type : Electric Winch Machine
  • Brand : HT
  • Winding : 100% Copper
  • Clutch System : Yes
  • Motor power : 3 hp
  • Phase : Single
  • Voltage : 220 V
  • Frequency : 50 Hz
  • Wire Rope Length : 50 meter
  • Wire rope Thickness : 8 mm
  • Gear Lubrication : Grease
  • Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
  • Lifting Height Single Hook : 25 meters
  • Lifting Height Double Hook : 50 meters
  • Lifting speed (Single/Double -Hook) : 7/14 meters per minute
  • Continuous Working Capacity : 2 hrs. (Approx)

Applications :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.

In the Box :
  • 1 x Electric Clutch Winch
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter

Note :
  • The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
