Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead. Electric chain hoists and electric wire rope hoists are the two primary varieties of electric hoists.

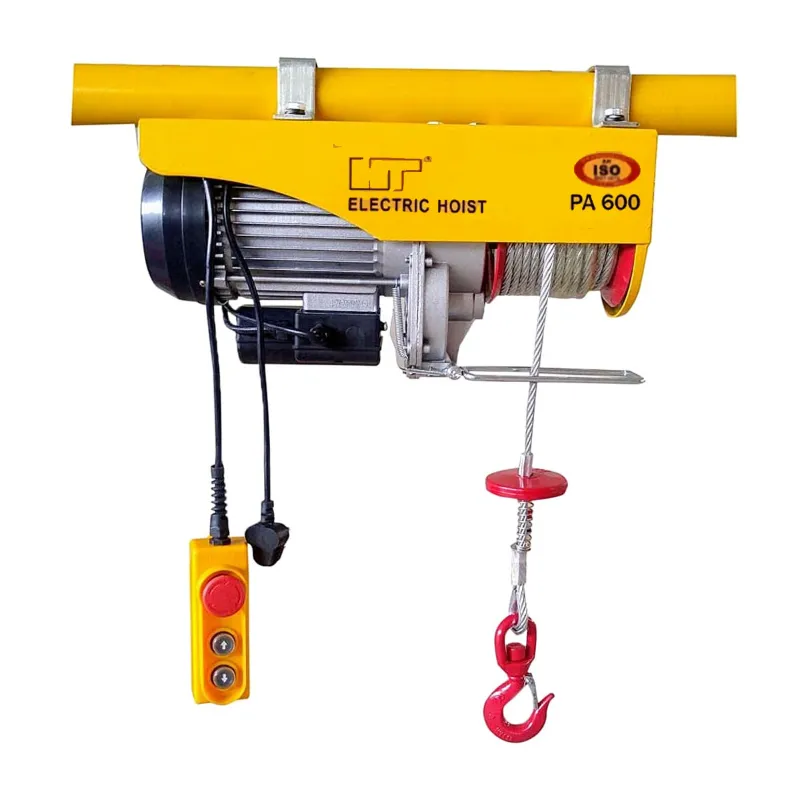

The electric hoist's 600 kg load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes. The Single line can move up to 300 kg and a double line can move up to 600 kg.
Features
:- With an emergency stop switch
- Reinforced braking switch with position limit
- Protection class up to IP54
- With a thermal prevention device
- Compact and small size design
- Long life span and high efficiency
- Applicable for most industry, business, handicraft industry and service industry
- Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane
Specification
:- Product Type: Electric Wire Rope Hoist
- Brand: HT
- Power : 1.6 hp
- Weight (Approx.) : 15.7 kg
- Load Capacity : 600 kg
- Phase : Single
- Product Type : Mini Electric Hoist
- Model : PA 600
- Brand : HT
- Motor Power : 1.6 HP
- Input Power : 1200 W
- Phase : Single Phase
- User Ways : Double Hook
- Working : Remote Controlled
- Armature coil : 100 percent Copper
- Rated Voltage : 220/230V,
- Frequency : 50 Hz
- Single Hook Load Capacity : 300 kg
- Double hook Load Capacity : 600 kg
- Hoisting speed : Single Hook & Double Hook - 16 m/min
- Hoisting Height : Single Hook-30m, Double Hook-15 m
- Wire Rope Diameter : 5 mm
- Wire Rope Length : 30 meter
- Continuous Working Capacity : 2hours (Approx).
Applications
:- Warehouses, automotive servicing and machine shops, and manufacturing facilities.
