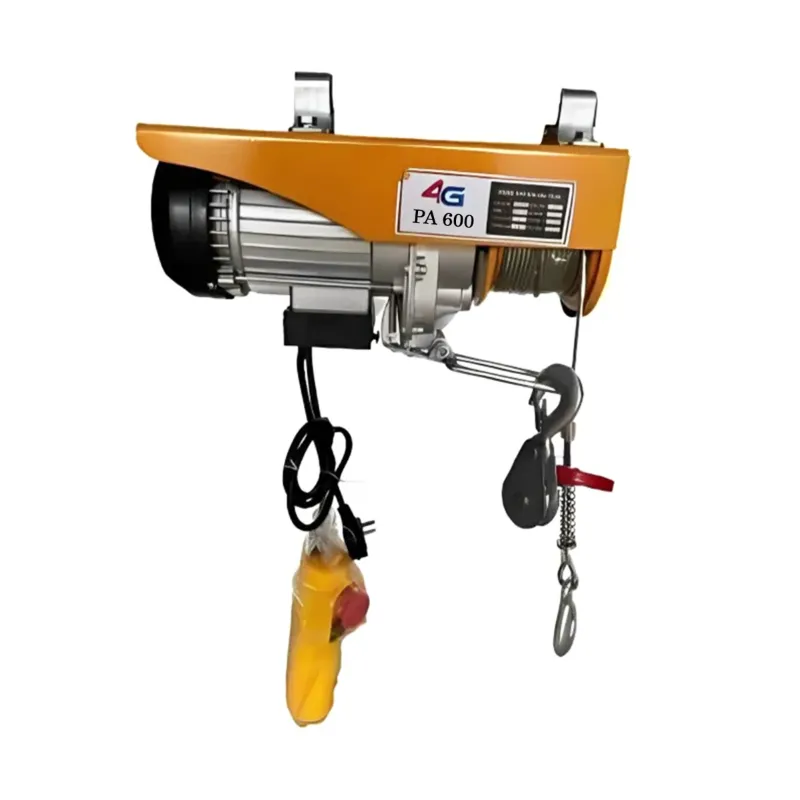

4G PA 600 kg Electric Hoist with 1.6 HP Copper Winding Motor, 4 mm diameter & 30 meter long Wire Rope

Brand : 4G

SKU : TI-4P-17502

MRP : ₹12000

₹8230

31% OFF!

9 people have bought this recently

Get Extra ₹123 OFF on Prepaid Orders

Delivery By: Jun 21 - Jun 23

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

The electric hoist's 600 kg load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes. The Single line can move up to 300 kg and a double line can move up to 600 kg.

PA 600 Kg Load capacity Electric Hoist

with 30 Meter, 4 mm Wire Rope

220/230V, 50 Hz Rated Voltage

Remote Controlled Electric hoist

Country of origin: China

Specification

Brand: 4G
Power : 1.6 hp
Weight (Approx.) : 15 kg
Load Capacity : 600 kg
Phase : Single

Product Type : Mini Electric Hoist
Model : PA 600
Brand : 4G
Motor Power : 1.6 HP
Phase : Single Phase
User Ways : Double Hook
Working : Remote Controlled
Armature Oil : 100 percent Copper
Rated Voltage : 220/230V, 50 Hz
Input Power : 880 W
Single Hook Load Capacity : 300 kg
Double hook Load Capacity : 600 kg
Single Hook : 300 kg
Double Hook : 600 kg
Hoisting speed : Single Hook & Double Hook - 15 m/min
Hoisting Height : Single Hook-20m (2000 cm), Double Hook-10m (1000 cm)
Wire Rope Diameter : 4 mm
Wire Rope Length : 30 meter (3000 cm)
Continuous Working Capacity : 6 hours (Approx)

Description

Electric hoists are a sort of material handling tool that lifts, lowers, and moves objects. They have an electric motor that drives them upwards. Electric chain hoists and electric wire rope hoists are the two most common types of electric hoist. With a weight capacity of 600 kg, the electric hoist is ideal for lifting tiny engines, transmissions, and building supplies. It has a steel hook with a strong clasp and supports two lifting methods. The single line can move up to 300 kilogram, while the double line can move up to 600kg.

Features

With an emergency stop switch. Features a reinforced braking switch with a position limit and IP54 protection class. Using a thermal prevention device Compact and small-size design Long life expectancy and excellent efficiency Suitable for numerous industries, including commerce, handicrafts, and the service industry. Can be utilized in conjunction with several types of electric or manual cranes, such as single-girder, double-girder, cantilever, and gantry cranes.

Accessories

1 Electric Hoist.
1 Electric Hoist Remote.
1 Eye Hook.
1 Pulley Hook
20-meter Wire Rope.
Mounting Case
Nutbolts and Clamps

Note :

All these accessories are assembled with the machine.

Applications

Warehouses, automotive servicing and machine shops, and manufacturing facilities.
