Brand: CROSSBEE

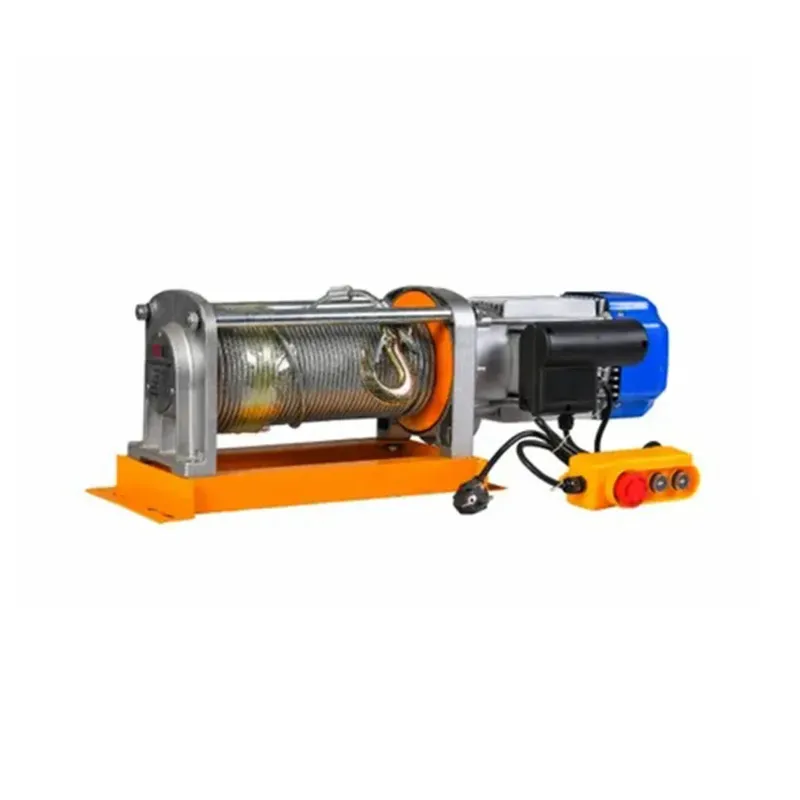

Crossbee S3 500-1000 kg Capacity 3 HP Electric Winch With 8 mm & 50-Meter Wire Rope
SKU: TI-CS-21058
₹16100 (Including GST)
MRP : ₹22000
Get extra ₹242 Discount (On Checkout)
Delivery By: May 21 - May 23
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CROSSBEE S3 500-1000 kg Capacity 3 HP Electric Winch
Wire Rope Length 50 meter
Wire Rope Thickness 8 mm
Country of origin: China
Description
Single Phase Electric Winch Machine is a compact and efficient winch system designed for single-phase power supply. It is commonly used for light-duty lifting and pulling applications, featuring a simple design and easy installation.
Specification
:- Brand: CROSSBEE
- Weight (Approx.) : 32.5 kg
- Load Capacity : 1000 kg
- Product Type : Electric Winch Machine S3
- Brand : CROSSBEE
- Winding : 100% Copper
- Clutch System : No
- Motor Power : 3 HP
- Phase : Single
- Voltage : 220 V
- Motor RPM : 2800
- Input Power : 1800 Watt
- Wire Rope : 8*19 mm Ungalvanized Wire Rope
- Wire Rope Length : 50 meter
- Wire Rope Thickness : 8 mm
- Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
- Lifting Height Single Hook : 25 meters
- Lifting Height Double Hook : 50 meters
- Lifting speed (Single/Double -Wire Rope) : 8/16 meter per min
- Continuous Working Capacity : 2 hrs. (Approx.)
Applications
:- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
In the Box :
- 1 x Electric Clutch Winch
- 1 x Eye Hook
- 1 x Wire Rope
- 1 x Remote
- 1 x Voltmeter
