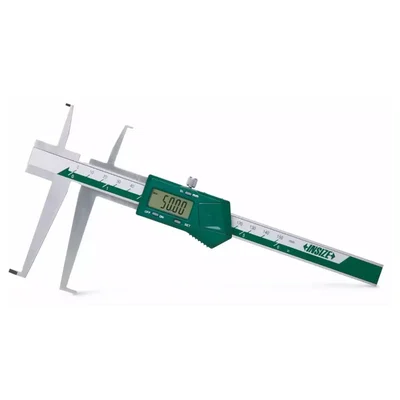

Insize 1176-150 Electronic Inside Groove Caliper, Upper Jaw Length 9-150mm

• Model No : 1176-150
• Measurement Range : 0-150 mm
• Resolution : 0.01 mm
• Material : Stainless Steel
• Upper Jaw Length : 9-150 mm
• Power Supply : Battery CR2032
• Overall Length : 260 mm
• Display : LCD
• Accuracy : ±0.04 mm
• Lower Jaw Length : 17-150 mm

Features

• Automatic Power Logic: The caliper wakes up instantly when the slider is moved ("Move-to-On") and powers down after 5 minutes of inactivity.
• Preset Function: Equipped with a SET and PRESET (+/-) button, allowing you to set a specific starting value for comparative or offset measurements.
• Data Output: Built with an SPC data interface.

Applications

• Deep Internal Grooves : Measuring O-ring seats or snap-ring channels located far inside hydraulic blocks or long bores.
• Small Aperture Inspection : Measuring internal recesses in parts with restricted entry diameters
• Industrial Maintenance : Checking for wear or corrosion inside manifold ports and valve housings.
• Machining Quality Control : Verifying internal dimensions of components during lathe or boring operations
