Brand: Elephant

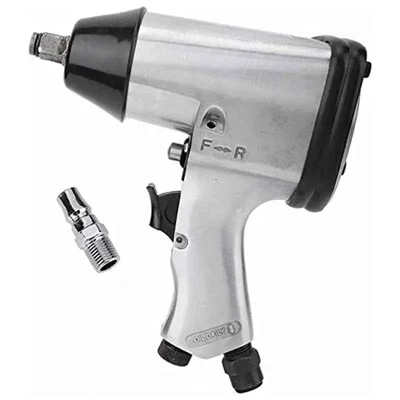

Elephant 1/2 Inch Air Impact Wrench, 7000 RPM No Load Speed (AT-5040B)
SKU: TI-E1-10689
5 people have bought this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹4130 ₹3149
24% OFF!
5 people have bought this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹3149 (Including GST)
MRP : ₹4130
24% OFF!
Get Extra ₹47 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
1/2 Inch (1.27 cm) Air Impact Wrench
7000 RPM Speed
340 Nm Maximum Torque
Country of origin: India
Specifications
- Brand: Elephant
- Weight (Approx.) : 2.4 kg
- No-Load Speed : 7000 rpm
- Square Drive Size : 0.5
- Air Pressure : 6.3 bar
- Max. Torque : 340 nm
- Model No. : AT-5040B
- Air Consumption : 7.5 CFM
- Air Inlet Size : 1/4 Inch (0.63 cm)
- Hose Size : 3/8 Inch (0.95 cm)
Description
The Elephant AT-5040B is a reliable 1/2-inch air impact wrench offering 7000 RPM no-load speed for fast, efficient bolt fastening and removal in demanding workshop conditions. This pneumatic rocking dog type tool provides up to 340 Nm maximum torque with a durable cast construction for longevity and reduced weight. Suited for professionals, it combines power, precision, and safety for heavy-duty applications.
Features
:- High-performance 7000 RPM motor with 340 Nm (250 ft-lb) torque and rocking dog mechanism for low-vibration, consistent hammering.
- Die-cast aluminum or cast iron body (approx. 2.0-2.18 kg), reversible rotation lever, and built-in air regulator for control.
- 1/2-inch square drive anvil, 1/4-inch air inlet, 3/8-inch hose compatibility, and 7.5-8 CFM consumption at 6.3-90 PSI.
- Front exhaust deflector, rubber grips for comfort, and friction ring retainer for secure socket hold.
- Operates on standard compressed air with minimal maintenance needs.
Applications
:- Automotive : Tire changes, lug nuts, suspension, and engine bolting.
- Industrial : Machinery assembly, production lines, and fabrication tasks.
- Workshop : Fleet servicing, equipment repairs, and HVAC installations.
- Construction : Structural fasteners, plumbing, and pipe fittings.
- Agriculture : Tractor maintenance and pump assemblies.
Usage
:- Connect to filtered, lubricated 6.3 bar air supply via 3/8-inch hose and 1/4-inch inlet; add tool oil daily.
- Attach 1/2-inch socket to anvil; adjust regulator and select forward/reverse direction.
- Engage trigger in short bursts for bolts up to 14-16 mm to apply torque without damage.
- Wear PPE; avoid prolonged runs to prevent overheating; blow out tool post-use.
- Store dry and pair with extensions for tight access.
