Brand: Emtop

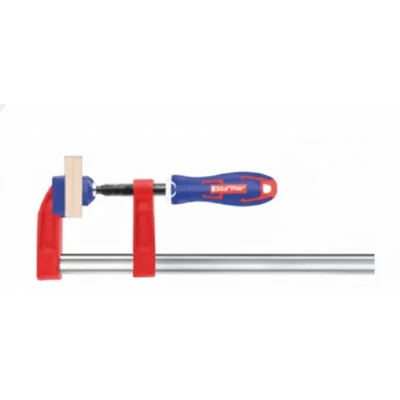

Emtop 50x250mm 170KGS F Clamp Plastic Handle (ECLPF05301)
SKU: TI-E5-54669
Delivery By: Jan 19 - Jan 21
MRP : ₹460 ₹360
22% OFF!
Delivery By: Jan 19 - Jan 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹360 (Including GST)
MRP : ₹460
22% OFF!
Get Extra ₹5 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
50x250mm F clamp with 170KGS force, 5x15mm steel bar, 11mm thread, plastic handle for large panel woodworking and assembly
Country of origin: China
Specifications
- Brand: Emtop
- Weight (Approx.) : 950 gm
- Size : 50x250 mm
- Net Quantity : 1 pc
- Clamp Size: 50mm throat depth x 250mm jaw opening
- Maximum Clamping Force: 170KGS (1700N)
- Iron Ruler: 5mm thickness x 15mm width high tensile steel
- Screw Thread: 11mm diameter Acme threading
- Handle: Ergonomic plastic T handle with soft grip
- Jaw Material: Cast malleable iron with protective pads
- Bar Material: Powder coated high strength steel
- Clamping Range: 0 250mm (parallel pressure)
- Throat Depth: 50mm maximum
- Packaging: Paper card hang pack
Description
The Emtop 50x250mm 170KGS F Clamp Plastic Handle ECLPF05301 provides extended reach clamping for larger woodworking, cabinetry, and fabrication projects. With identical 170kg clamping force and 5x15mm steel bar construction as smaller models, this 250mm jaw version handles wide panels, doors, and frame assemblies. The 11mm Acme threaded screw and ergonomic plastic T handle deliver smooth high torque operation while cast iron jaws with protective pads ensure parallel pressure without marring. Paper card packaging offers retail ready presentation and shipping protection.
Features
:- Extended 250mm Jaw Capacity: Secures wide workpieces up to 250mm length with full 170KGS even pressure distribution
- 170KGS Professional Clamping Force: High torque Acme threading applies glue up and lamination pressure without jaw slippage
- Heavy Duty 5x15mm Steel Bar: Flat iron construction resists bending under maximum load across extended jaw span
- 11mm Diameter Threaded Rod: Precision machined screw provides smooth operation and maximum force transmission
- 50mm Deep Throat Design: Accommodates thick materials up to 50mm depth with full clamping surface contact
- Ergonomic High Leverage Handle: Soft grip plastic T handle reduces operator fatigue during prolonged tightening
- Quick Grip Jaw Mechanism: Spring assisted movable head enables rapid positioning and workpiece removal
- Malleable Iron Jaws: Durable cast construction with removable protective pads prevents surface damage
- Corrosion Resistant Finishing: Powder coated bar and chrome plated hardware withstand workshop environments
Accessories
:- 2 x Removable jaw protective pads
- 1 x Quick release jaw pressure spring
- 1 x Screw thread lubricant applicator
Applications
:- Wide panel glue ups and edge joining
- Cabinet door and face frame assembly
- Large furniture component clamping
- Door construction and alignment
- Boat hull panel assembly
- Wide laminate and veneer pressing
- Metal fabrication beam alignment
- Stone countertop edge clamping
Usage
:- Position workpieces using alignment aids and protective pads
- Slide movable jaw to approximate position using quick release
- Hand tighten screw until initial workpiece contact is established
- Apply pressure gradually using T handle quarter turns
- Verify parallel jaw alignment across full 250mm span
- Final tighten to required pressure without exceeding 170KGS limit
- Release pressure slowly using reverse handle rotation
- Store with jaws partially open to prevent thread binding
