Brand:  Kirloskar

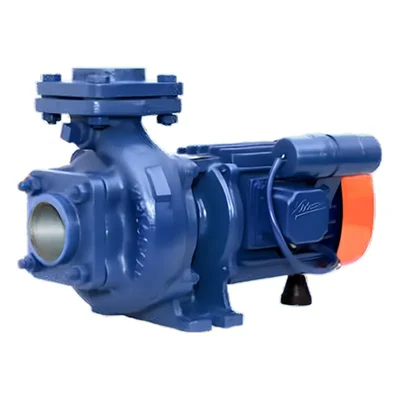

Kirloskar 1.5 HP Single Phase Centrifugal Monoblock Pump, 852 LPM, Pipe Size 80x80 mm (KAM-15) - 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (KAM-15) 1.5 HP Single Phase Monoblock Pump

14m Max. Head, 51120 LPH Max. Discharge

Suitable for Gardening, Lawn sprinklers, Domestic Purpose etc.

1 Year Warranty

Country of origin: India

Description

Kirloskar 1.5 HP Single Phase Centrifugal Monoblock Pump, 852 LPM, Pipe Size 80x80 mm (KAM-15) - 1 Year Warranty

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage
• Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminating the necessity of operating air release cock and ensures swifter and smoother operations.
• Flatter Efficiency Curve : Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions.
• Design to Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
• CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
• Easy Maintainable Designs : Easy maintainable design and batter interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
• High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

Specifications :

• Model No. : KAM-15
• Product Type : Monoblock Pump
• Brand : Kirloskar
• Motor Power : 1.1 kW

• Rated Voltage : 230 V, 50 Hz, AC Supply

• Electricity Connection : Single Phase

• Head Range : 9 - 14 Meter
• Pipe Size (Suction X Delivery) : 80 x 80 mm
• Discharge Range : 852 - 390 LPM (51120 - 23400 LPH)

Materials of Construction :

• Impeller : Cast Iron
• Delivery Casing : Cast Iron
• Motor Body : Cast Iron
• Pump Shaft : Carbon Steel

Applications :

• Gardening and small farm irrigation
• Lawn sprinklers
• Construction site
• Domestic and community water supply
• Water transfer and circulation

Warranty :

• 1 Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1.5 hp
• Weight (Approx.) : 42.5 kg
• Flow Rate : 852 lpm
• Head : 14 meter
