Brand : Imagine Technologies

Imagine Technologies Fully Automatic Water Level Controller for Govt./Municipal Supply Water (IT181WLCM)-1 Year Warranty

SKU : TB-IM-29347

MRP : ₹1980

₹1469

26% OFF!

5 people have bought this recently

Get Extra ₹22 OFF on Prepaid Orders

Delivery By: Jul 6 - Jul 8

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

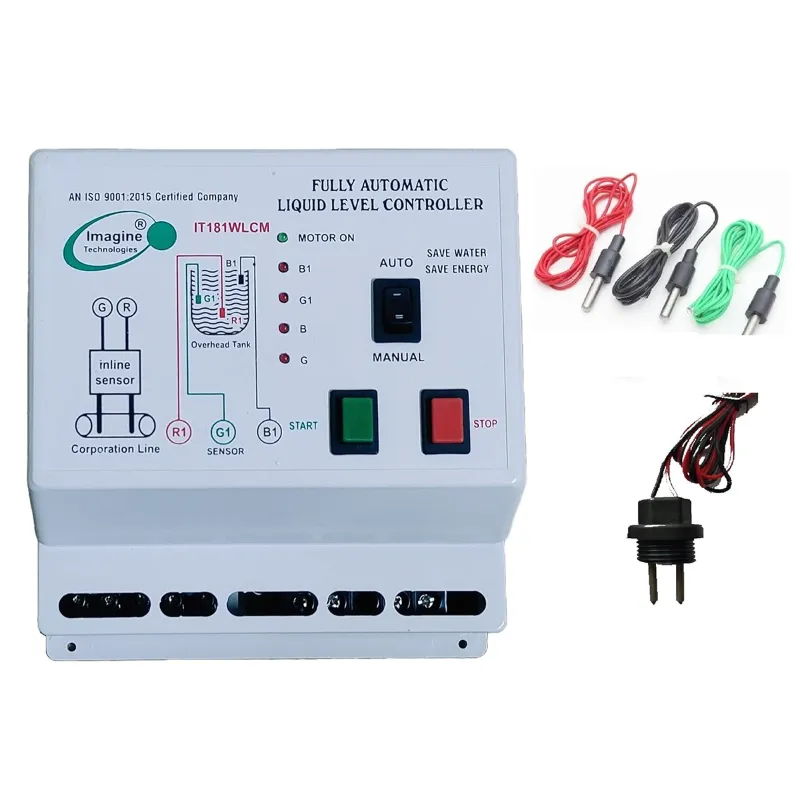

Imagine Technologies Fully Automatic Water Level Controller (IT181WLCM)

With 3 SS Sensors & 1 Inline Sensor

1 Year Warranty

Country of origin: India

Specification

Brand: Imagine Technologies
Weight (Approx.) : 0.80 kg

Model No. : IT181WLCM
Product Name : Fully Automatic Water Level Controller
Rated Voltage : 220-250 volts AC Power Supply
Electricity Connection : Single Phase

Working Process :

The inline sensor have 1 minute water detection timer. so it can Pumping water easily from Supply line.
This Model Will Automatically Switch ON Motor For 1 Minute If Inline Sensor Detect Water. After If Water Coming Continue Then, It Will Fill Upper Tank And Automatically Switch OFF When Up Tank Full. If Water Not Coming Within 1 Min It Will Off Motor As Dry Run Protection.

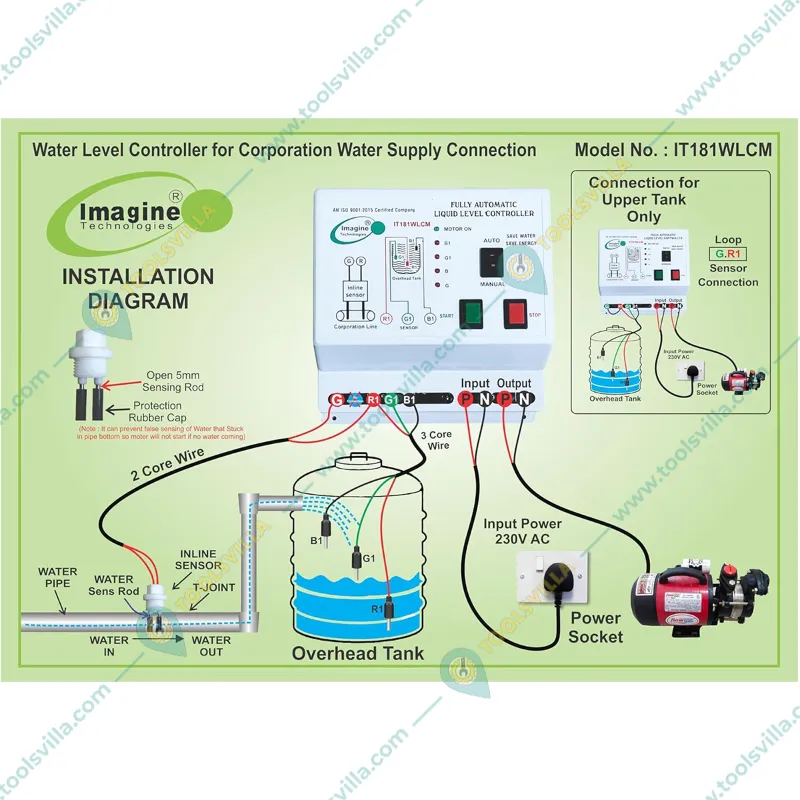

In Overhead Tank Install (R1) In Bottom Same As Above.
Then(G1) Sensor As Your Low Level Sensor (That Means Motor Start Sensor)
And Install (B1) Sensor As High Level Sensor For Overhead Tank (It Is Motor Cut Off Sensor When Tank Is Full, Motor Is Off).

Troubleshooting Steps

After connection if device have no power then Please check input power line is Proper or not and Test with Tester device.
Check all the sensor connect correctly as per installation manual.
After connection if not glow G light please check line sensor connection is proper or not, if not proper then fix it still not glowing then add in bucket to test directly.
If any of Sensor light not glowing from upper tank and water is overflowing then remove plastic cap of sensor and clean all the sensor of upper tank and reconnect again it will working again. Note: Motor will Start only if line Water Coming (G LED Glowing) and Upper Tank empty G1 & B1 LED off

(Water Level Below Middle Sensor G1, so adjust middle sensor G1 at the level When Next Water Coming Water Level Should Below G1) if Water Coming means G LED Glowing and Middle Sensor G1 LED Also Glowing Then Motor will Not Start.

Description

The Imagine Technologies Fully Automatic Water Level Controller is a state-of-the-art solution designed specifically for managing government and municipal water supply systems. This advanced controller ensures efficient water management by automatically regulating water levels in tanks, providing a reliable and hassle-free experience for users.

Features

Load capacity up to 2 Hp Motor (Monoblock, Openwell, Submersible, but only MCB type starter support, Push Button starter not support
Fully automatic water level controller with indicator for government or municipal supply water
Three stainless steel sensors for upper tank.
One inline sensor set and two rubber caps for sensor rod cover.

Accessories

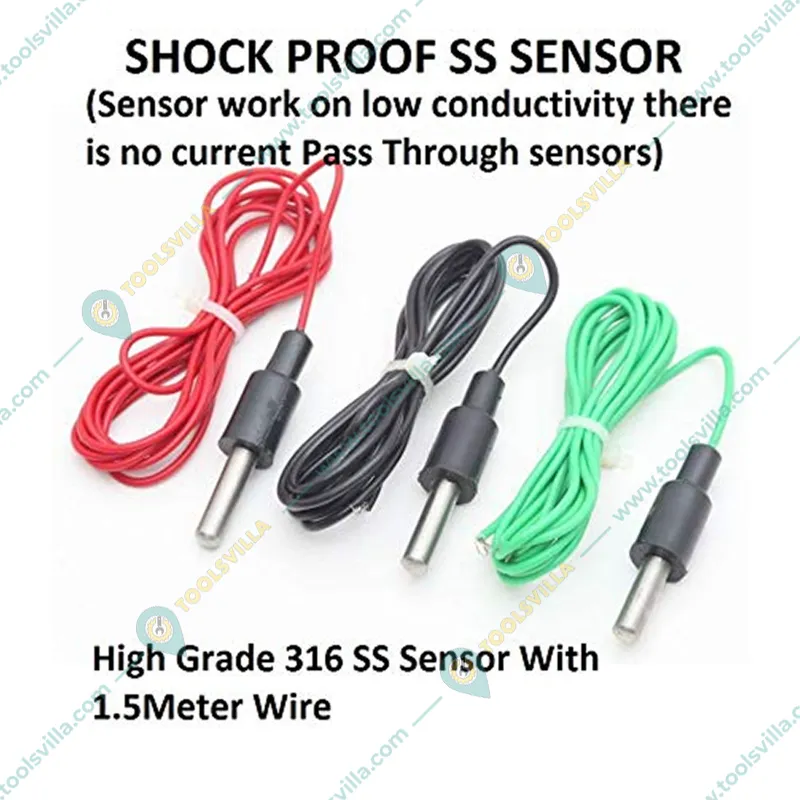

3 Shock Proof SS Sensors

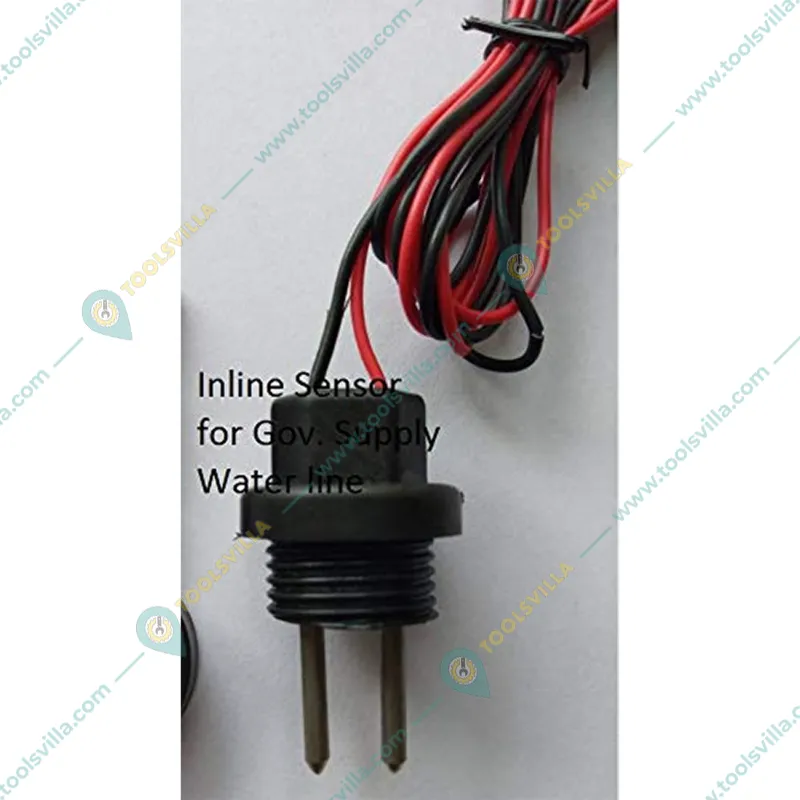

1 Inline Sensor

WARRANTY :

1 Year Warranty on Manufacturing Defects Only
