Brand: Generic ( Made in India )

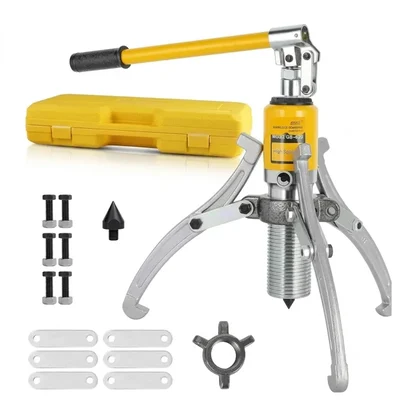

Premium Quality 5 Ton Hydraulic Gear Puller 3-in-1 Integrated Pump 360-Degree Swivel Head Bearing Wheel Hub Removal Tool
SKU: TI-I5-13515
239 people have bought this recently
Estimated Delivery By: Oct 7 - Oct 9
MRP : ₹5800 ₹4250
27% OFF!
239 people have bought this recently Estimated Delivery By: Oct 7 - Oct 9 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4250 (Including GST)
MRP : ₹5800
27% OFF!
Get Extra ₹64 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
This 5 Ton Hydraulic Gear Puller features a 3-in-1 integrated design with a 360° rotating pump head, 2" (50mm) ares travel, 0-6" reach, and 4-10" spread.
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Maximum Capacity: 5 Tons (5T)
- Ares Travel: 2 Inches (50 mm)
- Reach Range (Min/Max): 0 – 6 Inches (0 – 160 mm)
- Spread Range (Min/Max): 4 – 10 Inches (100 – 250 mm)
- Design Feature: 3-in-1 Integrated (Pump, Oil Tube, Drawing Machine)
- Pump Head Rotation: 360 Degrees
- Claw Design: Pull Horse Claw (Specially Designed for Strong Grip)
- Body Construction: High-Strength Threaded Pump Body
- Control Features: Movable Handle, Oil Return Switch, Horse Ring
Description
This 5 Ton Hydraulic Gear Puller offers a fast, efficient, and safe method for removing shaft-mounted components such as bearings, gears, sleeves, wheels, hubs, flanges, and sprockets. Featuring a 3-in-1 integrated design that combines the hydraulic pump, oil tube, and drawing machine into a single robust unit, it eliminates dangerous and time-consuming prying, heating, or hammering. Built from durable materials with a high-strength threaded body, this tool features a 360° rotatable pump head, adjustable jaws, a flexible movable handle, a secure horse ring, and a convenient oil return switch for smooth, effortless operation in both vertical and horizontal orientations.
Features
:- 5 Ton Maximum Pulling Capacity: Delivers up to 5 tons of force to safely remove shaft-mounted components without prying, heating, or hammering.
- 3-in-1 Integrated Design: Combines the hydraulic pump, oil tube, and drawing tool into one compact unit for quick, efficient setup.
- 360° Swivel Pump Head: Rotating pump head allows flexible positioning and effortless operation in confined spaces.
- Bidirectional Vertical & Horizontal Operation: Supports both vertical and horizontal pulling methods to adapt to various workspace orientations.
- Adjustable 2-Jaw & 3-Jaw Configuration: Adjustable claw design allows conversion between two-jaw and three-jaw setups for a strong grip and secure pulling.
- Humanized & Safe Controls: Features a movable flexible handle for minimum effort, a secure horse ring for firm holding, and an oil return switch for safe, quick retraction.
Applications
:- Removing bearings, gears, sleeves, wheels, hubs, flanges, and sprockets from shafts
- Automotive workshops, industrial machinery maintenance, and mechanical repair
- Vertical and horizontal component extraction tasks
Usage
:- Position the puller jaws around the outer edge of the gear, bearing, or hub in either a 2-jaw or 3-jaw setup.
- Turn the 360° pump head and use the movable flexible handle to pump hydraulic pressure until the component disengages smoothly.
- Turn the oil return switch after extraction to safely and quickly retract the piston stem.
