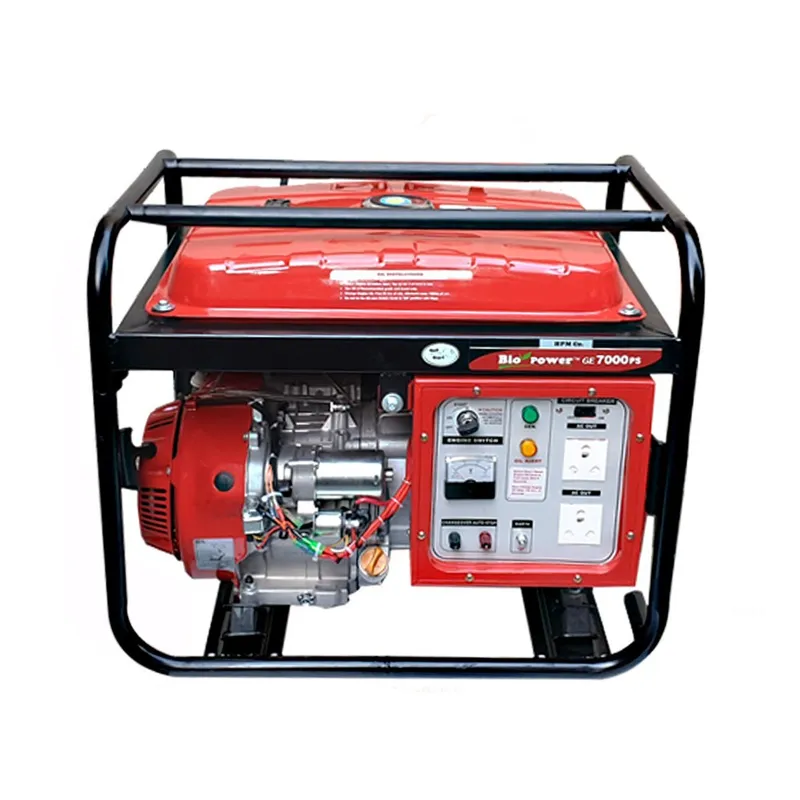

HPM 5.5 KVA Recoil and Self Start Portable Petrol Generator with 12 V Battery

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

5.5 kVA Powerful Portable Generator with battery

16HP Engine and 3600 RPM Speed

Single Phase, Petrol Operated

Description

HPM 5.5 KVA Recoil and Self Start Portable Petrol Generator with 12 V Battery

Description :

• Petrol gensets with Battery can be used to provide power to homes or businesses where power outages commonly occur.
• It can run 1.5 Ton Air Condition and Other Loads

Features :

• Low Priced and Economical Generator
• Powerful 5.5 KVA Portable Generator
• Voltmeter, Digital Hours Meter, Oil Alert System available
• Overload Protection (NFB)

• Costar Wheel and Handle Sets

Specification :

• Model No. : GE-7000 PS
• Product Type : Petrol Generator
• Brand : HPM
• Batter Power : 12 Volt 25Ah
• Battery Size (LxWxH) : 190x120x225
• Weight (with Battery) : 86 Kg (Approx)
• Dimensions (LxWxH) : 670x510x670 mm

Generator :

• Max AC. Output : 5500 VA
• Rated AC. Output : 5000 VA
• Rated Current : 21.8 Amps
• NFB : 22 Amps
• AC. Voltage at Rotate Load : 225 Volts ± 5 Volts, 50 Hz, Single Phase
• AC. Voltage at No load : 225 Volts+_-10 Volt


Alternator :

• Alternator Max Current Capacity : 24 Amps
• Alternator : Self Excitation and Constant Voltage (with AVR) THO <_25%


Engine :

• Model : HM192PY
• Type : OHV250 Inclined, Single Cylinder, S.I ,Forced air cooling
• Maximum Power : 16 HP,
• Speed : 3600 RPM
• Stroke : 4
• Maximum Power : 16.0HP
• Speed : 3600 RPM
• Displacement : 445 cc
• Starting System : Recoil Start and Self Start
• Fuel : Petrol
• Fuel Tank Capacity : 20.5 ltr
• Fuel Consumption : Petrol 2.8 ltr/Hr
• Continues Running (with one filling) : 7.5 Hrs
• Lube. Oil Capacity : 1200 ml
• Lubricating Oil Consumption : 4.3 gm/Hr
• Sound Level (Db) From 1 meter : <86Db

Applications :

• This Generator is Suitable for Household, Offices, Nursing Homes and Restaurants, Bank and ATM, Field Jobs etc.
