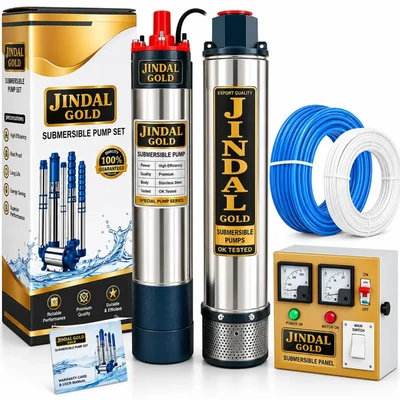

JINDAL GOLD 3Hp 15 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire

Brand: JINDAL

JINDAL GOLD 3Hp 15 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire

Name: JINDAL GOLD 3Hp 15 Stage(4") V4 1Ph Water Cooled Submersible Pump With CP, 30m Submersible Cable, Safety Wire
Brand: JINDAL
SKU: AB-KBL-200471
Price: 18699 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: AB-KBL-200471

MRP : ₹25300 ₹18699

26% OFF!

8692 people have viewed this recently

Get Extra ₹280 OFF on Prepaid Orders

Estimated Delivery By: Jul 25 - Jul 27

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹18699 (Including GST)

MRP : ₹25300

26% OFF!

Get Extra ₹280 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

3HP high-performance submersible pump.

Pump Type: V4

Head 37 meter

Ideal for 4-inch borewells.

Country of origin: India

Brand: JINDAL
Power : 3 hp
Weight (Approx.) : 30 kg
Flow Rate : 200 lpm
Head : 37 meter

Brand: Generic (Made in India)
Supply Voltage : 200-220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
No Of Stages : 15 Stage
Pump Type : V4 Type
Suitable Bore Size : 4 inch (100 mm)
Max. Head : 120 Ft. (37 Meter)
Pipe Size (Suction x Delivery) : 50 x 50 mm (2 x 2 inch)

Material Of Construction:

Motor Body : Stainless Steel
Motor Rotor : Copper
Impeller : Noryl (lvory)
Motor Shaft : SS-410
Pump Shaft : SS-410

The Jindal Gold 3HP 15 Stage V4 Submersible Pump is a powerful and highly efficient water management solution engineered for long-lasting performance in domestic, agricultural, and commercial applications. Built with a robust stainless steel body and 100% copper rotor windings, this single-phase pump ensures high energy efficiency and exceptional resistance to rust and wear. Its 15-stage configuration features premium Noryl impellers that deliver a maximum water flow of 200 liters per minute up to a head height of 120 feet.

Features

High-Grade Stainless Steel Build: The durable motor body and shafts safeguard internal components from oxidation, ensuring prolonged underground use.
Pure Copper Rotor: Provides high conductivity, minimizes energy losses, and maintains operational stability under standard voltage fluctuations.
Advanced Water-Cooled Motor: Uses eco-friendly water filling to perfectly cool down the engine coils and extend the active lifespan of the machine.
Ready-to-Install Accessory Kit: Bundled with a high-protection control panel, a heavy-gauge 30m electrical cable, and a braided safety wire for easy suspension.

Applications

Drinking water supply. Domestic & community water supply.
Drip irrigation, Sprinkler irrigation and gardening.
Housing-Complexes, Hospitals, High rise building.
Fire fighting, Landscaping, Fountains, Service stations.
De-watering of mines, Cooling water circulation and Booster application.

Warranty :

Submersible Pump Warranty : 1 Year Warranty on Manufacturing Defects.
Accessories Warranty : NO Warranty on the accessories.

Warranty Terms :

Dry Run Accidental Damages Are not covered in the warranty
For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
You have to send the product to the sellers warehouse.
Buyer has to bear the courier charges of both side for sending the product.

Usage

Fit the pump system exclusively inside standard borewell openings that match or exceed a 4-inch (100 mm) structural clearance.
Ensure the water-filled motor compartment is topped up as per user manual instructions before dropping the unit into the well casing.
Connect all electrical lines strictly via the provided protective analog/digital control panel starter to intercept phase surges.
Always check that the physical deployment depth leaves the pump entirely submerged underneath the dynamic lower water table levels to avoid accidental empty dry running cycles.

Maintenance

Avoid Dry Runs: Never turn on the system unless it is fully submersed; running dry causes thermal destruction that instantly voids your warranty terms.
Voltage Regulation: Keep checking the supply voltage inputs to stay close to the optimized 200-220V operational margin.
Debris Checks: Periodically pull up the unit if your groundwater has excessive silt content to keep the suction strainer mesh free of fine sand blockages.
Cable Inspection: Verify the outer insulation structural integrity of the 30-meter submersible line before reinstalling after seasonal storage gaps.
