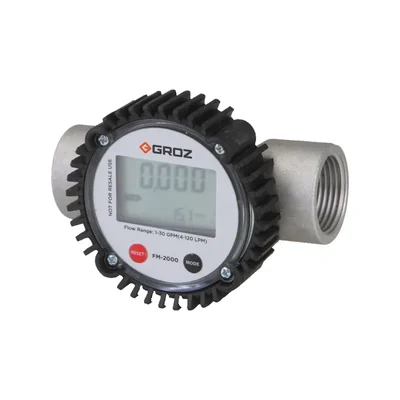

Groz Professional 1 Inch Digital Fuel Meter (FM/2000/0-1/BSP)

The Groz Professional Digital Fuel Meters are designed for low viscosity fluids, easy to install in line or for end of line applications.

Incorporating a Polyamide turbine measuring mechanism that excels in tolerating fuel contamination, this meter is engineered in versatility and durability.

Its robust aluminum die-cast body and sealed electronic card make it suitable for use with severe weather conditions.

It’s a bi-directional meter in which either ports can be used as Inlet/ Outlet.

The meter display can be rotated in 4 different positions ensuring great versatility.

The meter is capable of measuring fuel in litres, quarts, pints and gallons on Electronic display using 3.7V Li-Ion battery, with easy user re-calibration.

The meter is recommended for Diesel, Gasoline, Bio-diesel and Water, offering a flow rate of 4-120 LPM (1-30 GPM) with an impressive accuracy of ± 1% at a working pressure of 150 PSI (10 Bar).

Model No : FM/2000/0-1/BSP

Inlet/Outlet : 1" BSP (F)

Flow Rate : 4-120 LPM (1-30GPM)

Mechanism : Polyamide Turbine

Accuracy : ± 1%

Repeatability : ± 0.25%

Max Working Pressure : 150 PSI (10 BAR)

Working Temperature Range : -4°F TO 158°F (-20°C TO 70°C)

Water Resistance : IP55

Unit Of Measure : Pints, Quarts, Liters, Gallons

Partial Total : 0.001 to 99999 units

Max. Resettable Totalizer : 9
