Brand : Groz

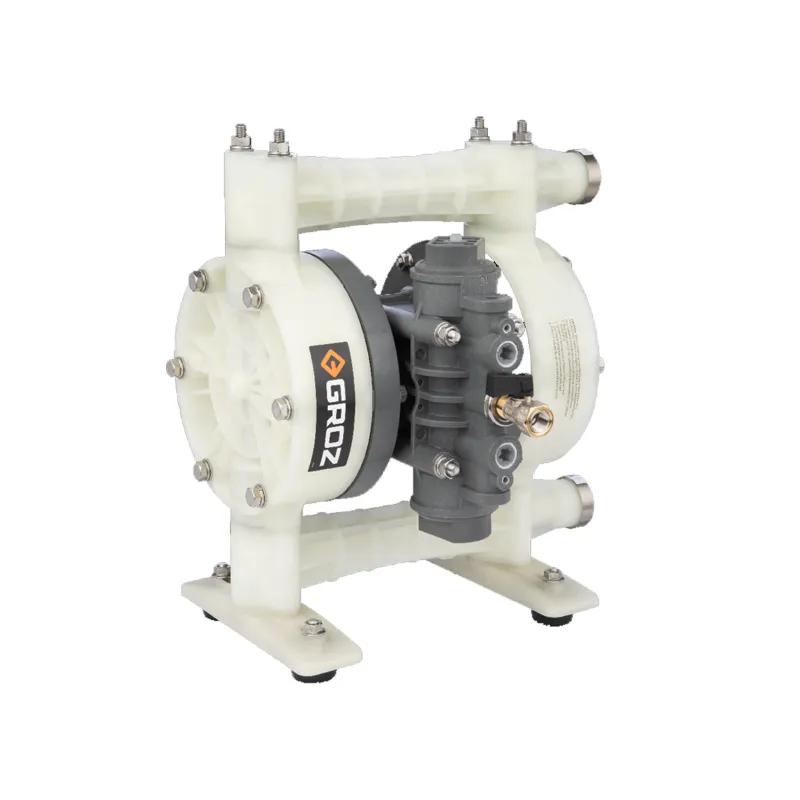

Groz 110 LPM Santoprene Air Operated Double Diaphragm Pump (AODD/3-4/BPS/N)
SKU : TI-G1-35005
MRP : ₹129877
₹105600
19% OFF!
-
1
+
Get Extra ₹1,584 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Groz Air Operated Double Diaphragm Pump
110 LPM Flow Rate
Santoprene Diaphragm

Country of origin: China
Description
The Groz Polypropylene Air-Operated Double Diaphragm Pumps are self-priming pumps ideal for large volume transfers. These pumps excel in transfering contaminated media & effortlessly cleaning out pits or liquids that can be a mix of several products like oil, water & antifreeze all mixed together.

Features

 :
  • Engineered to handle diverse fluids with high solid content, their design ensures seamless pumping, even in dry-run situations.
  • Experience the freedom to adjust flow rates and discharge pressures. Its dead head-capability ensures that discharge pressure never exceeds the air inlet pressure.
  • The pump is an excellent choice for shear sensitive fluids because it ensures minimal parts come in contact with liquid.
  • Explosion-proof, submersible pumps that guarantees safety & efficiency over time.
  • These pumps are designed for use with an air inlet pressure of 20-100 PSI (1.40- 6.89 Bar).
  • The polypropylene body pumps come with a-choice of Santoprene (TP0) diaphragms that is best for use with abrasives, acids, caustics etc. and Teflon (PTFE) diaphragms that are chemically most inert compound, suitable for use with highly aggressive liquids such as solvents etc.

Specification

 :
  • Product Type: Barrel Pump
  • Brand: Groz
  • Weight (Approx.) : 5 kg
  • Model No : AODD/3-4/BPS/N
  • Size : 3/4 inch
  • Casing : Polypropylene
  • Diaphragm : Santoprene
  • Flow Rate : 0 - 110 LPM (0 - 29.1 GPM)
  • Air Inlet Pressure : 29-100 PSI (2-7 BAR)
  • Pump Inlet/ Outlet : 3/4 inch NPT (F)
  • Air Exhaust : 3/4 inch NPT (F)
  • Max Particle Size : 1/16 inch (2.0 mm)
  • Suction Lift Dry : 18-feet
  • Max. Air Consumption : 1200 LPM (42.4 CFM)

Questions & Answers (0)
Reviews & Ratings (0)
Write a Review
Product Image Gallery
Groz 110 LPM Santoprene Air Operated Double Diaphragm Pump (AODD/3-4/BPS/N)
