Brand : Groz

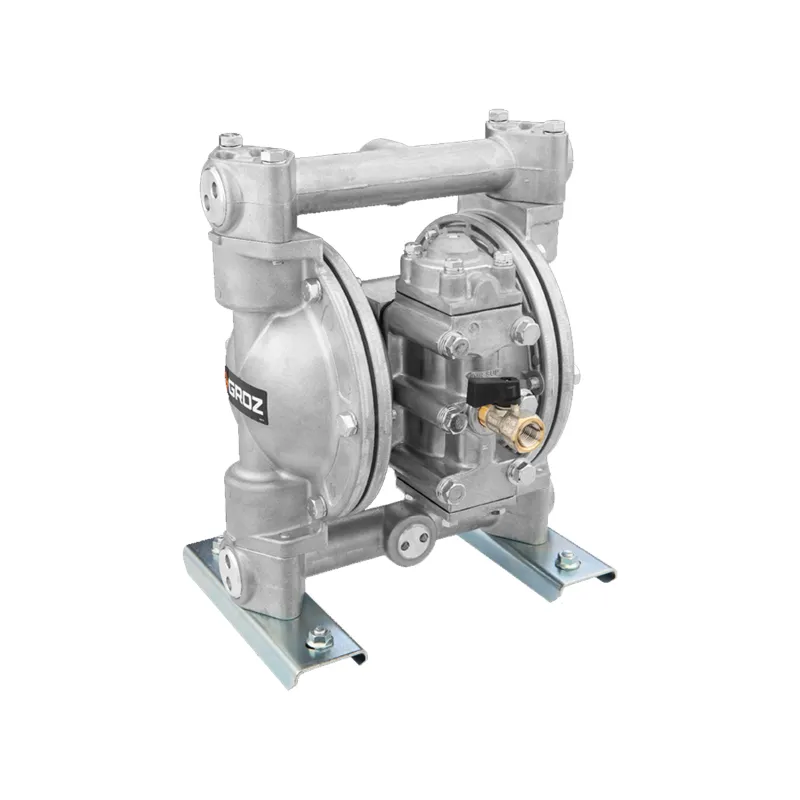

Groz 110 LPM Hytrel Air Operated Double Diaphragm Pump (AODD/3-4/BAH/N)
SKU : TI-G1-35002
MRP : ₹100257
₹79800
20% OFF!
-
1
+
Get Extra ₹1,197 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Groz Air Operated Double Diaphragm Pump
110 LPM Flow Rate
Hytrel Diaphragm

Country of origin: China
Description
The Groz Aluminium Air-Operated Double Diaphragm Pumps are self-priming pumps ideal for large volume transfers. These pumps excel in transfering contaminated media & effortlessly cleaning out pits or liquids that can be a mix of several products like oil, water & antifreeze all mixed together.

Features

 :
  • Engineered to handle diverse fluids with high solid content, their design ensures seamless pumping, even in dry-run situations.
  • Experience the freedom to adjust flow rates and discharge pressures. Its dead head-capability ensures that discharge pressure never exceeds the air inlet pressure.
  • The pump is an excellent choice for shear sensitive fluids because it ensures minimal parts come in contact with liquid. Explosion-proof, submersible pumps that guarantees safety & efficiency over time.
  • These pumps are designed for use with an air inlet pressure of 20-100 PSI (1.40- 6.89 Bar).
  • The lightweight yet strong aluminum body pumps come with a Hytrel (TPFE) diaphragm which make these pumps compatible for use at higher temperatures & imparts much longer life as opposed to pumps with BUNA-N diaphragm.

Specification

 :
  • Product Type: Barrel Pump
  • Brand: Groz
  • Weight (Approx.) : 5 kg
  • Model No : AODD/3-4/BAH/N
  • Size : 3/4 inch
  • Casing : Aluminium
  • Diaphragm : Hytrel
  • Flow Rate : 0 - 110 LPM (0 - 29.1 GPM)
  • Air Inlet Pressure : 29-100 PSI (2-7 BAR)
  • Pump Inlet/ Outlet : 3/4 inch NPT (F)
  • Air Exhaust : 3/4 inch NPT (F)
  • Max Particle Size : 1/16 inch (2.0 mm)
  • Suction Lift Dry : 18-feet
  • Max Air Consumption : 1200 LPM (42.4 CFM)
