Brand: Groz

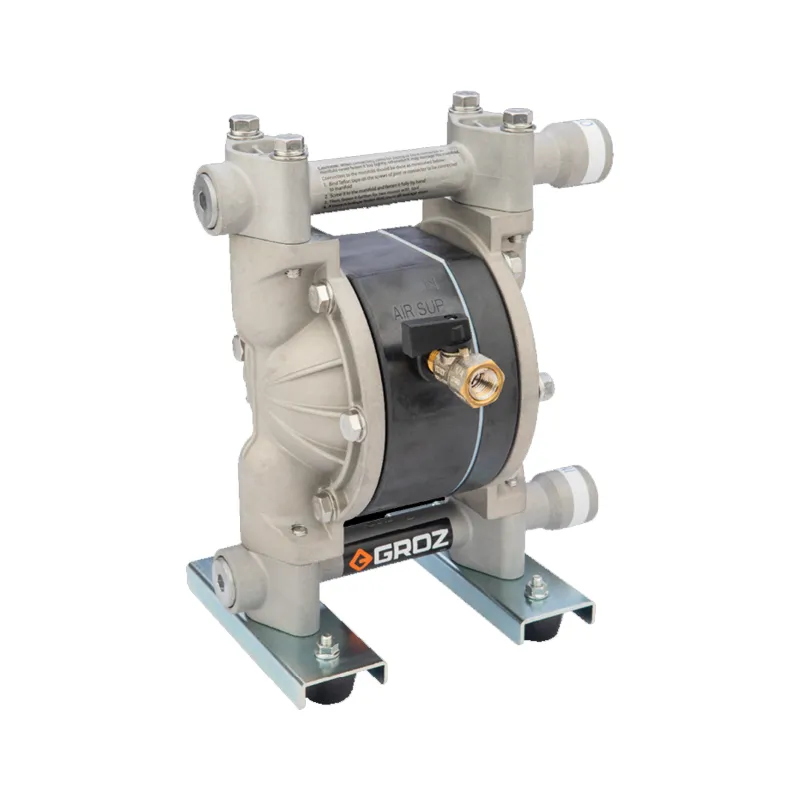

Groz 50 LPM Hytrel Air Operated Double Diaphragm Pump (AODD/1-2/BAH/N)
SKU: TI-G5-34979
Delivery By: Dec 9 - Dec 11
MRP : ₹68353 ₹49800
27% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹49800 (Including GST)
MRP : ₹68353
27% OFF!
Get Extra ₹747 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Groz Air Operated Double Diaphragm Pump
50 LPM Flow Rate
Hytrel Diaphragm
Country of origin: China
Specifications
- Brand: Groz
- Weight (Approx.) : 5 kg
- Model No : AODD/1-2/BAH/N
- Size : 1/2 inch
- Casing : Aluminium
- Diaphragm : Hytrel
- Flow Rate : 0 - 50 LPM (0 - 13.22 GPM)
- Air Inlet Pressure : 29-100 PSI (2-7 BAR)
- Pump Inlet/ Outlet : 1/2 inch NPT (F)
- Air Exhaust : 3/8 inch NPT (F)
- Max Particle Size : 1/32 inch (1 mm)
- Suction Lift Dry : 5-feet
- Max Air Consumption : 450 LPM (15.9 CFM)
Description
The Groz Aluminium Air-Operated Double Diaphragm Pumps are self-priming pumps ideal for large volume transfers. These pumps excel in transfering contaminated media & effortlessly cleaning out pits or liquids that can be a mix of several products like oil, water & antifreeze all mixed together.
Features
:- Engineered to handle diverse fluids with high solid content, their design ensures seamless pumping, even in dry-run situations.
- Experience the freedom to adjust flow rates and discharge pressures. Its dead head-capability ensures that discharge pressure never exceeds the air inlet pressure.
- The pump is an excellent choice for shear sensitive fluids because it ensures minimal parts come in contact with liquid.
- Explosion-proof, submersible pumps that guarantees safety & efficiency over time.
- These pumps are designed for use with an air inlet pressure of 20-100 PSI (1.40- 6.89 Bar).
- The lightweight yet strong aluminum body pumps come with a Hytrel (TPFE) diaphragm which make these pumps compatible for use at higher temperatures & imparts much longer life.
