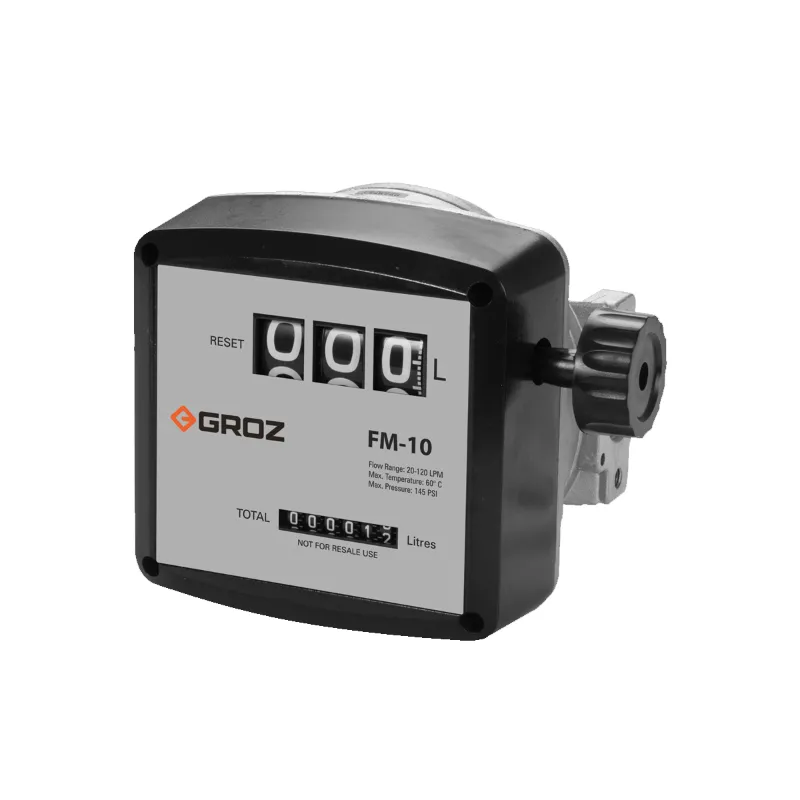

Groz 145 Psi Max. Pressure Mechanical Diesel Meter for Diesel, Biodiesel and Oils (FM/10/0-1/BSP)

The Groz Mechanical Diesel Meter sets the standard for precision and reliability in fuel measurement.

Incorporating a nutating disc mechanism that excels in tolerating fuel contamination, this meter is engineered for versatility and durability.

Its robust aluminum die-cast construction ensures resilience in various applications, whether in-line or gravity flow with a minimum gravity head of 4'.

Specifically designed for compatibility with electric fuel pumps, The Groz meter boasts a register cap that can be effortlessly rotated for convenient display reading in every 90° orientation.

With easy user re-calibration and availability in liter/gallon versions, this meter is recommended for diesel, biodiesel and low to medium viscosity oils, offering a flow rate of 20-120 LPM (5-32 GPM) with an impressive accuracy of ± 1%.

Model No : FM/10/0-1/BSP

Flow Rate : 20-120 LPM (5-32 GPM)

Mechanism : Nutating disc

Accuracy : ± 1%

Repeatability : ± 0.30%

Least count / Resolution : 0.10 Litres or 0.10 Gallons

Max. Working Pressure : Upto 145 PSI (10 BAR)

Burst Pressure : 435 PSI (30 BAR)

Pressure Loss : 3 PSI (0.20 BAR)

Working Temperature Range : -10°C TO 60°C (14°F TO 140°F)

Max. Resettable Batch Totalizer : 999.9 Litres or 99.9 Gallons
