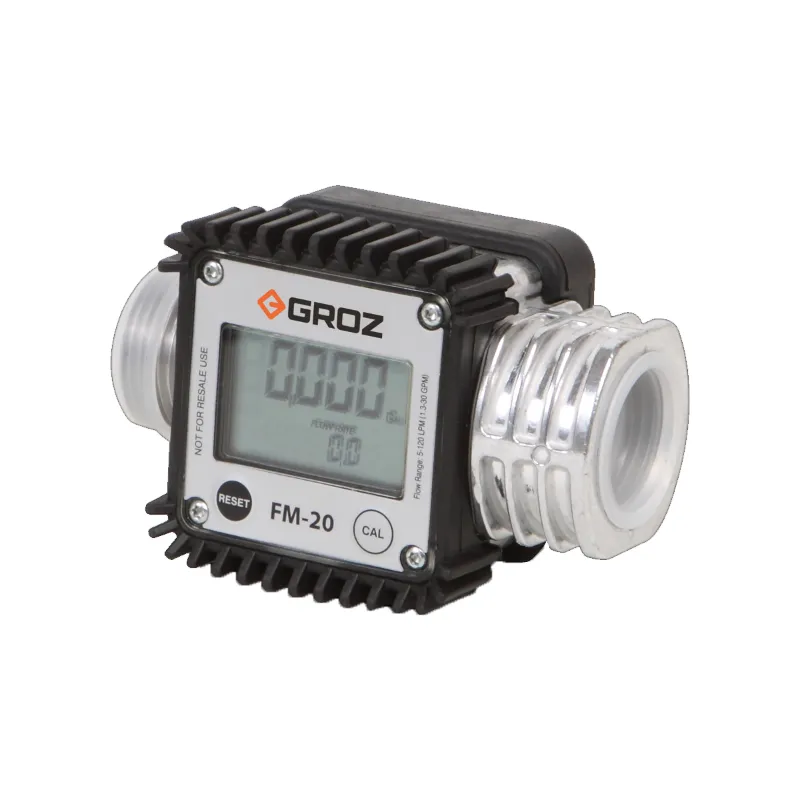

Groz Heavy Duty 300 Psi Max. Pressure Mechanical Diesel Meter (FM/20/0-1/BSP)

Brand: Groz

Groz Heavy Duty 300 Psi Max. Pressure Mechanical Diesel Meter (FM/20/0-1/BSP)

Name: Groz Heavy Duty 300 Psi Max. Pressure Mechanical Diesel Meter (FM/20/0-1/BSP)
Brand: Groz
SKU: TI-GH-35257
Price: 21490 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-GH-35257

MRP : ₹30086 ₹21490

29% OFF!

Get Extra ₹322 OFF on Prepaid Orders

Estimated Delivery By: Oct 10 - Oct 12

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹21490 (Including GST)

MRP : ₹30086

29% OFF!

Get Extra ₹322 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Groz Mechanical Diesel Meter

300 PSI (20 BAR) Max. Working Pressure

Country of origin: China

Brand: Groz

Model No : FM/20/0-1/BSP
Flow Rate : 5-120 LPM (1.3-30 GPM)
Mechanism : Polyamide Turbine
Accuracy : ± 1 %
Repeatability : ± 0.30%
Least count / Resolution : 0.001 units
Max. Working Pressure : 300 PSI (20 BAR)
Burst Pressure : 580 PSI (40 BAR)
Pressure Loss : 0.50 PSI (0.04 BAR)
Working Temperature Range : -10°C TO 50°C (-14°F TO 140°F)
Max. Resettable Batch Totalizer : 99

The Groz Heavy Duty Digital Fuel Meters are designed for low viscosity fluids, easy to install in line or for end of line applications.

Features

Incorporating a Polyamide turbine measuring mechanism that excels in tolerating fuel contamination, this meter is engineered in versatility and durability.

Its robust aluminum die-cast body and sealed electronic card make it suitable for use with severe weather conditions.

It’s a bi-directional meter in which either ports can be used as Inlet/ Outlet.

The meter display can be rotated in 4 different positions ensuring great versatility.

The meter is capable of measuring fuel in litres, quarts, pints and gallons on Electronic display using AAA 1.5V batteries with easy user re-calibration.

The meter is recommended for Diesel, Gasoline, Bio-diesel and Water, offering a flow rate of 5-120 LPM (1.3-30 GPM) with an impressive accuracy of ± 1% at a working pressure of 300 PSI (20 Bar).
