Brand: Groz

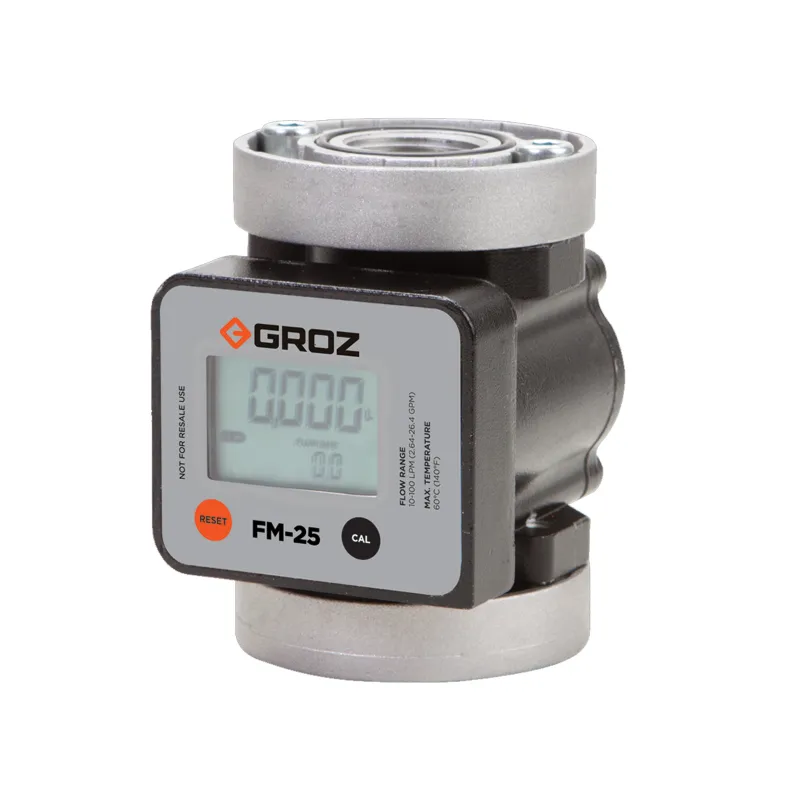

Groz Heavy Duty 1 Inch Digital Oval Gear Fuel Meter (FM/25/0-1/BSP)
SKU: TI-GH-35267
Delivery By: Dec 9 - Dec 11
MRP : ₹40224 ₹32350
20% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹32350 (Including GST)
MRP : ₹40224
20% OFF!
Get Extra ₹485 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Groz Heavy Duty Digital Oval Gear Fuel Meter
435 PSI (30 BAR) Max. Working Pressure
Country of origin: China
Specifications
- Brand: Groz
- Weight (Approx.) : 1 kg
Model No : FM/25/0-1/BSP
Inlet/Outlet threads : 1 " BSP (F)
Flow Rate : 10-100 LPM (2.64-26.4 GPM)
Accuracy : ± 0.5%
Repeatability : ± 0.2%
Max Working Pressure : 435 PSI (30 BAR)
Working Temperature Range : -10°C TO 60°C (14°F TO 150°F)
Partial Total : 0.001 to 99999 units
Max. Resettable batch totalizer : 9
Max. Non Resettable batch totalizer : 99
Least count / Resolution : 99 units (5 digits × 100 indicator)
Viscosity : 9
Description
The Groz Digital Oval Gear Fuel Meters set the standard for precision and reliability in fuel measurement.
Features
:Incorporating an oval gear mechanism that excels in high accuracy over a wide range of fluids, this meter is engineered for versatility and durability.
Its robust aluminium die-cast construction ensures resilience in various applications, whether in-line, at 90 degree inlet and outlet ports at right angle and flow with a minimum gravity head of 4'.
Specifically designed for compatibility with electric fuel pumps, The Groz meter boasts a register cap that can be effortlessly rotated for convenient display reading in every 90° orientation.
With easy user re-calibration and availability in litre/gallon versions, this meter is recommended for diesel, gasoline and low to medium-viscosity oils, offering a flow rate of 15-75 LPM (4-20 GPM) with an impressive accuracy of ± 2%.
