Brand : KBS

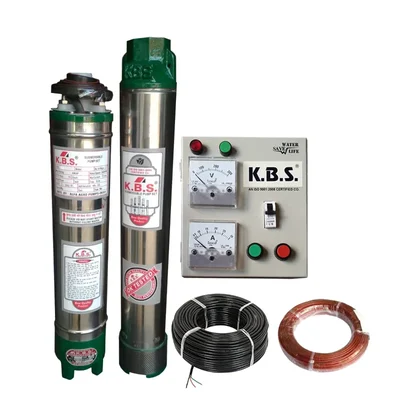

KBS 0.5 HP 10 Stage(4 inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty
SKU : TI-K0-12948
MRP : ₹14000
₹8000
43% OFF!
-
1
+
28 people have bought this recently
Get Extra ₹120 OFF on Prepaid Orders
Delivery By: Aug 22 - Aug 24
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 0.5 HP 1 Phase 10 Stage Submersible Pump With Control Panel
200Ft Max. Head, 60 LPM Max. Flow Rate
4 inch Bore, V4 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: KBS
  • Power : 0.5 hp
  • Weight (Approx.) : 16.5 kg
  • Flow Rate : 60 lpm
  • Head : 61 meter
  • Product Type : Submersible Pump
  • Brand : KBS
  • Wattage : 0.37 kW
  • Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • No Of Stages : 10 Stage
  • Pump Type : V4 Type
  • Suitable Bore Size : 4 inch (100 mm)
  • Cora : 2
  • Max. Head Range : 200 Ft. (61 Meter)
  • Max. Flow/Discharge Rate : 60 LPM (3600 LPH)
  • Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)

Material Of Construction :
  • Motor Body : Stainless Steel
  • Motor Rotor : Copper
  • Pump Bowl : Noryl (lvory)
  • Impeller : Noryl (lvory)
  • Motor Pipe : Stainless Steel
  • Bearing Bush : Leaded Bronze
  • Motor Shaft : SS-410
  • Thrust Bearing : Carbon Vs Stainless Steel
  • Stamping : CRNGO
  • Rotor : EC Grade Copper Conductor
  • Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
  • Suction/Outlet : CI (Grade FG-200/FG-220)
  • Diffuser : Noryl (Engineering Glass Filled)
  • Pump Shaft : SS-410
  • Pump Pipe : Stainless Steel


Description
A water-cooled submersible pump is designed to operate fully submerged in a fluid, with its motor's heat dissipated directly into the surrounding pumped liquid, ensuring continuous and efficient operation. These pumps are extensively used for domestic, agricultural, and industrial water supply, dewatering, and wastewater management, especially where reliable and continuous pumping from submerged sources is required.

Features

 :
  • Corrosion resistant stainless steel body
  • Specially designed for low voltage working
  • High Electrical and Mechanical efficiency
  • Higher heat dissipation
  • Dynamically balanced rotor and other rotating parts for uniform clearance
  • Specially designed bearing to withstand axial thrust loads
  • Designed for high voltage fluctuation
  • High efficiency, low power consumption.

Accessories

 :
  • Control Panel
  • 30 Meter Submersible Cable
  • Safety Wire

Applications

 :
  • Drinking water supply. Domestic & community water supply.
  • Drip irrigation, Sprinkler irrigation and gardening.
  • Housing-Complexes, Hospitals, High rise building.
  • Fire fighting, Landscaping, Fountains, Service stations.
  • De-watering of mines, Cooling water circulation and Booster application.

Warranty :
  • Submersible Pump Warranty : 1 Year Warranty on Manufacturing Defects.
  • Accessories Warranty : NO Warranty on the accessories.

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
