Brand: KBS

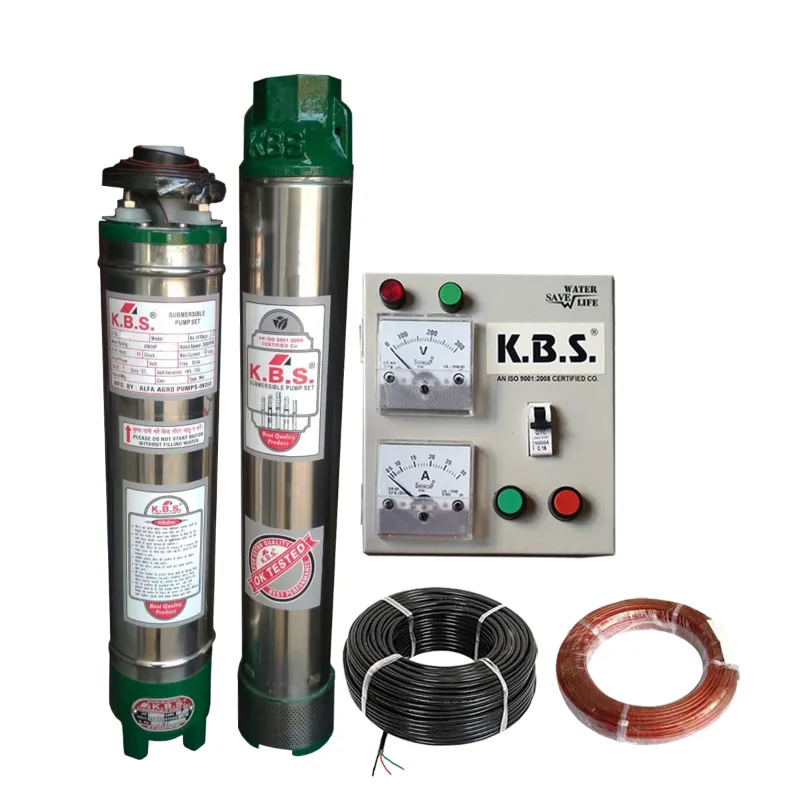

KBS 0.5 HP 10 Stage(4 inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty
SKU: TI-K0-12948
₹8000 (Including GST)
MRP : ₹14000
Get extra ₹120 Discount (On Checkout)
Delivery By: May 27 - May 29
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 0.5 HP 1 Phase 10 Stage Submersible Pump With Control Panel
200Ft Max. Head, 60 LPM Max. Flow Rate
4 inch Bore, V4 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Description
KBS 0.5 HP 10 Stage(4 inch) V4 Single Phase Water Cooled Submersible Pump With Control Panel, 30M Submersible Cable, Safety Wire & 1 Year Warranty
Features :
- Corrosion resistant stainless steel body
- Specially designed for low voltage working
- High Electrical and Mechanical efficiency
- Higher heat dissipation
- Dynamically balanced rotor and other rotating parts for uniform clearance
- Specially designed bearing to withstand axial thrust loads
- Designed for high voltage fluctuation
- High efficiency, low power consumption.
Specification :
- Product Type : Submersible Pump
- Brand : KBS
- Wattage : 0.37 kW
- Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- No Of Stages : 10 Stage
- Pump Type : V4 Type
- Suitable Bore Size : 4 inch (100 mm)
- Cora : 2
- Max. Head Range : 200 Ft. (61 Meter)
- Max. Flow/Discharge Rate : 60 LPM (3600 LPH)
- Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)
Accessories :
- Control Panel
- 30 Meter Submersible Cable
- Safety Wire
Material Of Construction :
- Motor Body : Stainless Steel
- Motor Rotor : Copper
- Pump Bowl : Noryl (lvory)
- Impeller : Noryl (lvory)
- Motor Pipe : Stainless Steel
- Bearing Bush : Leaded Bronze
- Motor Shaft : SS-410
- Thrust Bearing : Carbon Vs Stainless Steel
- Stamping : CRNGO
- Rotor : EC Grade Copper Conductor
- Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
- Suction/Outlet : CI (Grade FG-200/FG-220)
- Diffuser : Noryl (Engineering Glass Filled)
- Pump Shaft : SS-410
- Pump Pipe : Stainless Steel
Application :
- Drinking water supply. Domestic & community water supply.
- Drip irrigation, Sprinkler irrigation and gardening.
- Housing-Complexes, Hospitals, High rise building.
- Fire fighting, Landscaping, Fountains, Service stations.
- De-watering of mines, Cooling water circulation and Booster application.
Warranty :
- 1 Year WARRANTY on manufacturing defects only.
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
Specifications
:- Brand: KBS
- Power : 0.5 hp
- Weight (Approx.) : 16.5 kg
- Flow Rate : 60 lpm
- Head : 61 meter
