36m Max. Head, 2700 LPH Max. Discharge
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar

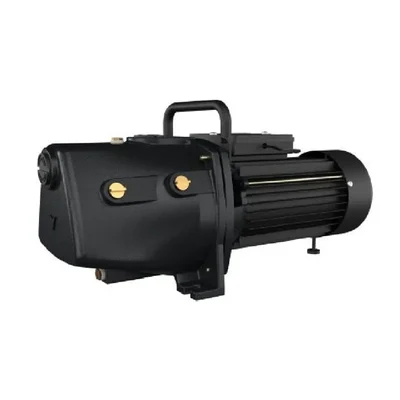

Kirloskar 0.5 Hp Single Phase Copper Winding Shallow Well Pump, 36m Head, 25X25mm (LIFTER 75) - 1 Year Warranty
SKU : TI-K0-19894
MRP : ₹12460
₹8189
34% OFF!
-
1
+
1699 people have viewed this recently
Delivery By: Jun 19 - Jun 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Kirloskar 0.5 Hp Single Phase Shallow Well Pump
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 0.5 hp
- Weight (Approx.) : 15.5 kg
- Flow Rate : 45 lpm
- Head : 36 meter
- Model No. : LIFTER 75
- Product Type : Shallow Well Pump
- Brand : Kirloskar
- Wattage : 0.37 kW
- Electricity Connection : Single Phase
- Rated Voltage : 160 to 240 Volt, 50 Hz AC Power Supply
- Pipe Size (Suction X Delivery) : 25X25 mm
- Head Range : 6 to 36 Meter (19.7 to 118 Feet)
- Discharge Range : 2700 to 1080 LPH (45 to 18 LPM)
- Winding Material : Copper
- Speed : 2700 RPM
- No Of Stages : 1
Material Of Construction :
- Impeller : Noryl
- Delivery Casing : Cast Iron
- Motor Body : Aluminium
- Pump Shaft : Carbon Steel
- Sealing : Mech Seal
Description
LIFTER pumps comprise a thermal oveload protector for protection of motor from overloading. Suitable for the voltage range 160 to 240 volts (Single Phase) , and are thus perfectly suited for pumping water from shallow wells and tanks, domestic water supply, lifting water to apartments and houses, lawn sprinklers and water transfer.
Features
:- Superior Performance : Up to 260% Higher discharge as compared to competition in same class will lead to save up to 72% time to fill the 2000 liters overhead tank.
- High Suction Lift : The pump has suction lift capacity up to 8.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
- High Grade F-Class Insulation : Robust design to withstand higher temperatures, which ensure the reliability, safety of equipment and enhances the life.
- Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
- Wide Voltage Design : The motor is designed to withstand wide voltage variation from 160 to 240 volts and reduces motor burning in case of low/high voltage.
- High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Enhanced Grip and Portability : A handle attached to the pump allows user to carry the pump anywhere, adding to its portability and convenience of use.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians
Applications
:- Pumping water from shallow wells and tanks
- Domestic water supply
- Lifting water to apartments and houses
- Lawn sprinklers and water transfer
WARRANTY :
- One Year Onsite Warranty.
