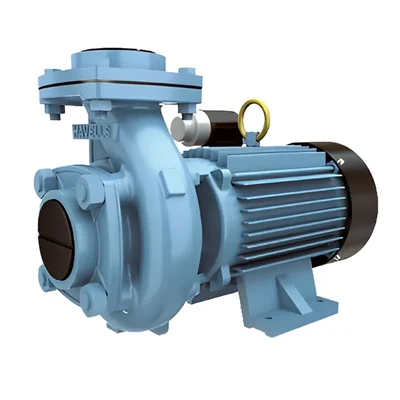

Havells 0.5Hp Single Phase Centrifugal Monoblock Pump, 49ft Head, 100 LPM, 24ft Suction Capacity (CMM05)-1 Year Warranty

Brand: Havells

Havells 0.5Hp Single Phase Centrifugal Monoblock Pump, 49ft Head, 100 LPM, 24ft Suction Capacity (CMM05)-1 Year Warranty

Name: Havells 0.5Hp Single Phase Centrifugal Monoblock Pump, 49ft Head, 100 LPM, 24ft Suction Capacity (CMM05)-1 Year Warranty
Brand: Havells
SKU: AB-HP-20221622
Price: 5829 INR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: AB-HP-20221622

MRP : ₹6960 ₹5829

16% OFF!

37 people have bought this recently

Get Extra ₹87 OFF on Prepaid Orders

Delivery By: Dec 28 - Dec 30

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹5829 (Including GST)

MRP : ₹6960

16% OFF!

Get Extra ₹87 OFF on Prepaid Orders

Show Similar

Notify Me

Havells 0.5 Hp (0.37 kW) Single Phase Centrifugal Monoblock Pump

15m Max. Head, 100 LPM Max. Discharge

Copper Winding

1 Year Warranty

Note : Do not run the pump without water.

Country of origin: India

Brand: Havells
Power : 0.5 hp
Weight (Approx.) : 11.00 kg
Flow Rate : 100 lpm
Head : 15 meter

Model No. : CMM05
Product Type : Centrifugal Monoblock Pump
Brand : Havells
Wattage : 0.37 kW
Electricity Connection : Single Phase
Motor Winding : Copper
Operating Voltage Range : 180 to 220 Volt
Max. Working Pressure : 1.5 kg/cm² (21.335 PSI)
High Suction With Self Priming : Up to 7.5 meters (24 feet)
Pipe Size (Suction x Delivery) : 25 x 25 mm
No Load Speed : 2850 RPM
Head Range : 10 to 15 Meter (32 to 49 Feet)
Discharge Range : 6000 to 2100 LPH (100 to 35 LPM)
Cable Length and Size : 0.21 m & 0.75 sq.mm
Insulation : F Class
Capacitor : 10 µF

Materials of Construction :

Motor Body : FG200 for longer life
Motor Stator : Low watt loss stamping
Motor Direction of rotating : Anti-clockwise when viewed from drive end
Dynamically balanced rotor : Yes
Pump Casing : Cast Iron
Impeller : Cast Iron
Shaft : Stainless Steel (SS-410)

The Havells 0.5 HP Single Phase Centrifugal Monoblock Pump (CMM05) is a compact water pump ideal for domestic and light commercial use. It can lift water up to a 49ft head, deliver a flow rate of 100 liters per minute (LPM), and has a suction capacity of 24ft, backed by a 1-year warranty.

Features

Energy Efficient Motor: Motors are with F Class Insulation, which ensures that motor doesn't get burned and works smoothly even at high temperatures.
Pump Performance: Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
