Brand : Havells

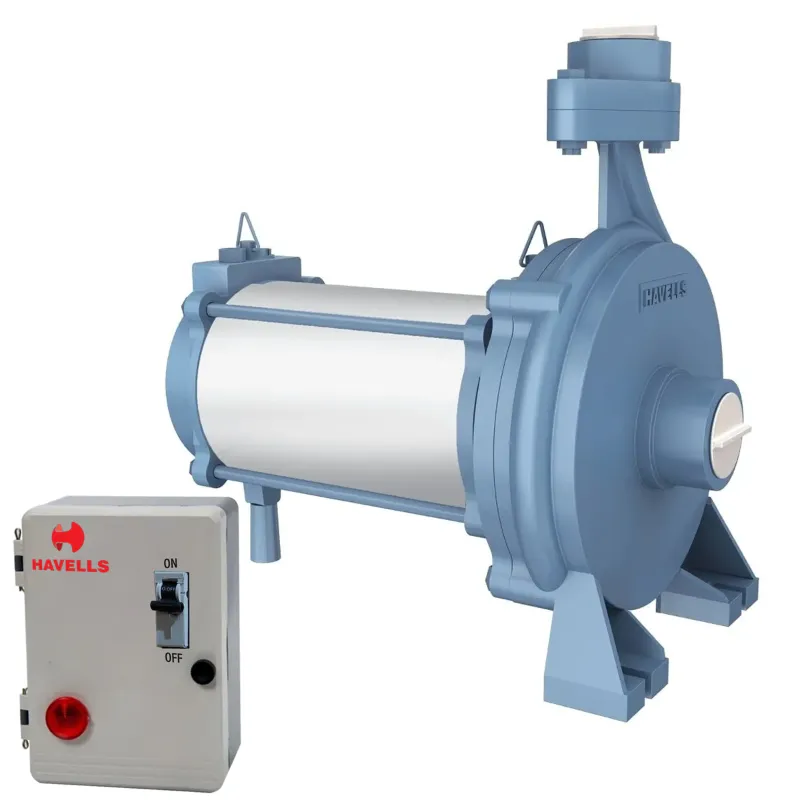

Havells 0.5 HP Single Phase Openwell Submersible Pump With Control Panel (WL-2) - 1 Year Warranty
SKU : AB-HP-20221627
MRP : ₹10500
₹7799
26% OFF!
-
1
+
4 people have bought this recently
Get Extra ₹117 OFF on Prepaid Orders
Delivery By: Aug 4 - Aug 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Havells 0.5 Hp Single Phase Openwell Submersible Pump With Control Panel
16m Max. Head, 140 LPM Max. Discharge
Copper Winding Motor
1 Year Warranty
Country of origin: India
Specification
  • Brand: Havells
  • Power : 0.5 hp
  • Weight (Approx.) : 12.5 kg
  • Flow Rate : 140 lpm
  • Head : 16 meter
  • Model No. : WL-2
  • Product Type : Openwell Submersible Pump
  • Brand : Havells
  • Wattage : 0.37 kW
  • Electricity Connection : Single Phase
  • Max. Working Pressure : 1.6 kg/cm²
  • Input Current : 5.1 Amp
  • Operating Voltage : 180 to 240 V
  • Head Range : 8 to 16 Meter (26 to 52 Feet)
  • Discharge Range : 140 to 70 LPM (8400 to 4200 LPH)
  • Operating Water Temperature : Up to 65°C
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  • No Load Speed : 2900 RPM

Materials of Construction :
  • Motor Body : Stainless Steel
  • Motor Stator : Low Watt loss silicon steel lamination
  • Pump Casing : Graded Cast Iron
  • Impeller : Noryl -30 % GF
  • Shaft : Stainless Steel (SS-410)


Description
Horizontal Openwell Submersible Pump sets belong to the LHL series. Pump set must be built to handle voltage drops of up to 320 volts. It has thrust bearings with an adequate capacity and well-designed sleeves for longer life. High water discharge rates and lower power costs are produced by pump sets with high operating efficiencies.

Features

 :
  • Energy Efficient Motor : Motors are with B Class Insulation, which ensures that motor doesn't get burned and works smoothly even at high temperatures.
  • Pump Performance : Pumps have higher suction power and give high discharge in its operating range.

Accessories

 :
  • Control Panel

Applications

 :
  • Under ground water tanks in Apartments, bungalows, farm-houses, fountains.

Warranty :
  • 1 Year Warranty.
