Brand: Havells

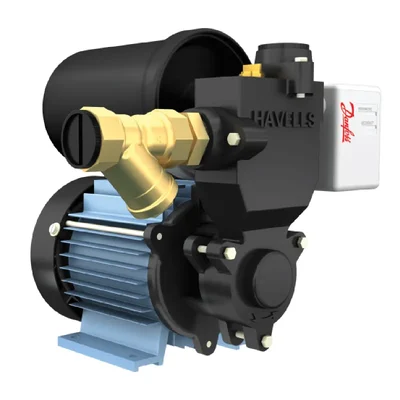

Havells (HBTM2)0.5 HP Single Phase Pressure Booster Pump, with 1 Year Warranty
SKU: AB-HP-20221628
2703 people have viewed this recently
Delivery By: Dec 24 - Dec 26
MRP : ₹14300 ₹9799
31% OFF!
2703 people have viewed this recently Delivery By: Dec 24 - Dec 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹9799 (Including GST)
MRP : ₹14300
31% OFF!
Get Extra ₹147 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Havells 0.5 HP (0.37 kW) Single Phase Pressure Booster Pump
Copper Winding
27m (89ft) Max. Head and 33 LPM Max. Flow
1 Year Warranty
Country of origin: India
Specifications
- Brand: Havells
- Power : 0.5 hp
- Weight (Approx.) : 7.2 kg
- Flow Rate : 33 lpm
- Head : 27 meter
- Model No. : HBTM2
- Product Type : Pressure Booster Pump
- Brand : Havells
- Wattage : 0.37 kW
- Electricity Connection : Single Phase
- Insulation Class : Class F
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Max. Head Range : 6 to 27 meters (20 to 89 feet)
- Max. Flow Rate : 33 to 5 LPM
- Speed : 2900 RPM
- Winding Material : Copper
Warranty :
- 1 year warranty on manufacturing defects only.
Description
A pressure booster pump is a pump designed to increase the water pressure in a system, drawing water from a low-pressure source and discharging it at a higher, more consistent pressure. These pumps are crucial for maintaining adequate water flow in homes, commercial buildings, and industrial applications where existing water pressure is insufficient.
Features
:- Pressure pump is designed to automatically start & stop on opening and closing of taps to maintain water pressure.
- Pump starts automatically when water pressure drops to Cut-in pressure and automatically stops when water pressure reaches Cut-out pressure, thus minimum pressure of 1.5 bar is always maintained in piping. The Cut-in & Cut-off pressures are settable for fine tuning as per site condition if required.
- Y type brass strainer is supplied with pump to avoid entry of dirt particles thus improving pump life. The same is supplied separately & must be installed at suction with right direction of flow.
- TEFC motor (2 Pole) 50 Hz, 1 Phase AC power supply.
- Fitted with float level switch (HBTJSE Series).
- High quality & longer life mechanical seal.
- Fitted with thermal overload protector (TOP).
- Class F motor insulation.
