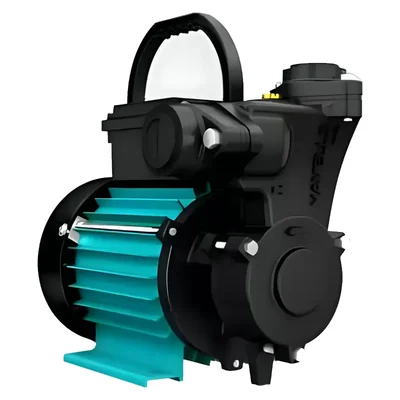

Havells 0.5 Hp 1Phase High Flow Self Priming Monoblock Pump, 68ft Max. Head, 1900LPH (ZINNIA 2 Plus) - 1 Year Warranty

Brand: Havells

Havells 0.5 Hp 1Phase High Flow Self Priming Monoblock Pump, 68ft Max. Head, 1900LPH (ZINNIA 2 Plus) - 1 Year Warranty

Name: Havells 0.5 Hp 1Phase High Flow Self Priming Monoblock Pump, 68ft Max. Head, 1900LPH (ZINNIA 2 Plus) - 1 Year Warranty
Brand: Havells
SKU: AB-HP-20221618
Price: 3429 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: AB-HP-20221618

MRP : ₹5100 ₹3429

33% OFF!

3381 people have viewed this recently

Get Extra ₹51 OFF on Prepaid Orders

Delivery By: Dec 20 - Dec 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹3429 (Including GST)

MRP : ₹5100

33% OFF!

Get Extra ₹51 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Havells 0.5 HP Single Phase Self Priming Monoblock Pump (ZINNIA 2 Plus)

21m Max. Head, 1900 LPH Max. Discharge

1 Year Warranty

Country of origin: India

Brand: Havells
Power : 0.5 hp
Weight (Approx.) : 6 kg
Flow Rate : 31 lpm
Head : 21 meter

Model No. : ZINNIA 2 Plus
Product Type : Self Priming Monoblock Pump
Brand : Havells
Motor Power : 0.37 kW
Electricity Connection : Single Phase
Max. Working Pressure : 7 kg/cm²
Operating Water Temperature : Ambient Temperature
Motor Winding : Copper
Direction of Rotating : Anti-clockwise when viewed from driving end
Dynamically Balanced Rotor : Yes
High Suction with Self Priming : Up to 7.5 meters (25 feet)
Cable Length and Size : 0.3 m & 1.0 sq. mm
Low Power Consumption : Yes
No Load Speed : 2900 RPM
Head Range : 6 to 21 Meters (20 to 68 Feet)
Flow Rate : 1900 to 450 LPH
Pipe Size (Suction x Delivery) : 25 x 25 mm

Materials of Construction :

Motor Body : Graded Cast Iron
Pump Casing : Cast Iron
Impeller : Forged Brass
Shaft : EN-8
Motor Stator : CRC Pressed grade stamping

A self-priming monoblock pump integrates the motor and pump into a single unit and can automatically draw air from the suction line to initiate pumping without manual priming. It is widely used for domestic water supply, small-scale irrigation, and dewatering applications where reliable, hassle-free operation is needed .

Features

Energy Efficient Motor: Motors are with F Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
Pump Performance: Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.

Applications

Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation.

Warranty :
