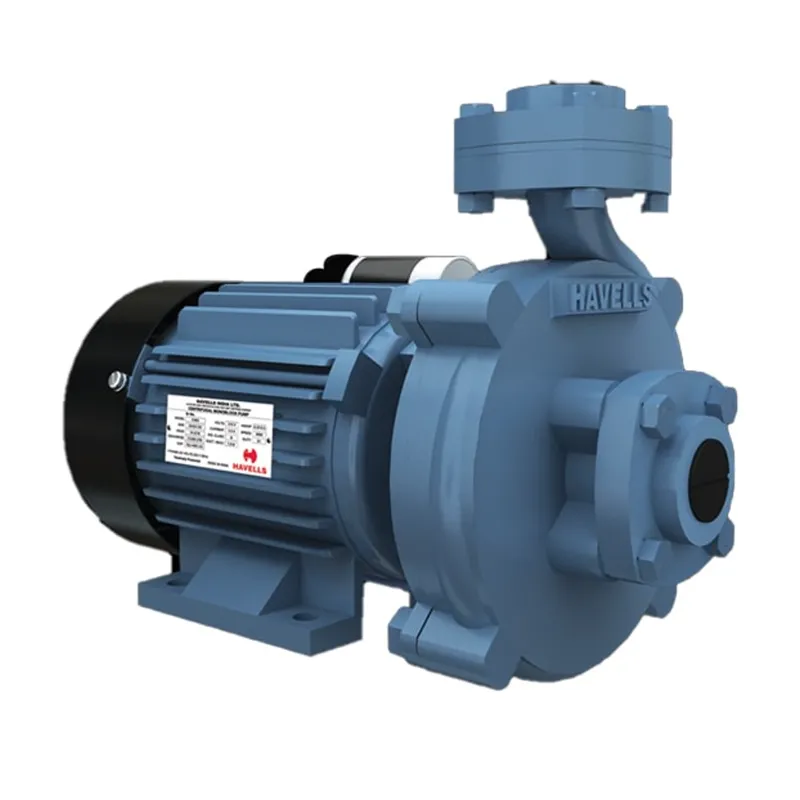

Havells CM05 - 0.5 HP Single Phase Centrifugal Monoblock Pump 25 Ft Suction Power (1 Year Warranty)
SKU : AB-HP-20221621
MRP : ₹9000
₹7599
16% OFF!
-
1
+
2629 people have viewed this recently
Get Extra ₹114 OFF on Prepaid Orders
Delivery By: Aug 5 - Aug 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Havells 0.5 HP (0.37 kW) Single Phase Self Priming Centrifugal Monoblock Pump
2900 RPM and suction up to 7.5 meters (25 feet)
1 Year Warranty
Country of origin: India
Specification
  • Brand: Havells
  • Power : 0.5 hp
  • Weight (Approx.) : 13.5 kg
  • Flow Rate : 116 lpm
  • Head : 22 meter
  • Model No. : CM05
  • Product Type : Centrifugal Monoblock Pump
  • Brand : Havells
  • Wattage : 0.37 kW
  • Electricity Connection : Single Phase
  • Motor Winding : Copper
  • Voltage Operating Range : 180 to 240 V
  • Head Range : 14 to 22 Meter (45 to 72 Feet)
  • Discharge Range : 7000 to 1830 LPH
  • Max. Working Pressure : 2.2 kg/cm²
  • Operating Water Temperature : Up to 65°C
  • High Suction with self priming : Up to 7.5 meters (25 feet)
  • No Load Speed : 2900 RPM
  • Pipe Size (Suction x Delivery) : 25 x 25 mm

Materials of Construction :
  • Motor Body : High Pressure die-cast CI
  • Motor Stator : Low Watt loss silicon steel lamination
  • Pump Casing : Graded Cast Iron
  • Impeller : Cast Iron
  • Shaft : EN-8

Description
A centrifugal monoblock pump is a compact unit where the centrifugal pump and electric motor are integrated onto a single shaft. This design eliminates the need for separate coupling, making it highly efficient, easy to install, and widely used for domestic, agricultural, and industrial water transfer applications.

Features

 :
  • Energy Efficient Motor: Motors are with B Class Insulation, which ensures that motor does't get burned and works smoothly even at high temperatures.
  • Pump Performance: Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.

Applications

 :
  • Domestic Water Supply
  • Agricultural Irrigation
  • Industrial Water Transfer
Warranty :
  • 1 year warranty on manufacturing defects only.

Note : Do not run the pump without water.
