Brand : Havells
Havells 1Hp Single Phase Self Priming Monoblock Pump, 34m Max. Head, 2700 LPH (HYDRANT1) - 1 Year Warranty
SKU : AB-HP-20221619
MRP : ₹6300
₹5510
13% OFF!
-
1
+
930 people have viewed this recently
Get Extra ₹83 OFF on Prepaid Orders
Delivery By: Aug 18 - Aug 20
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

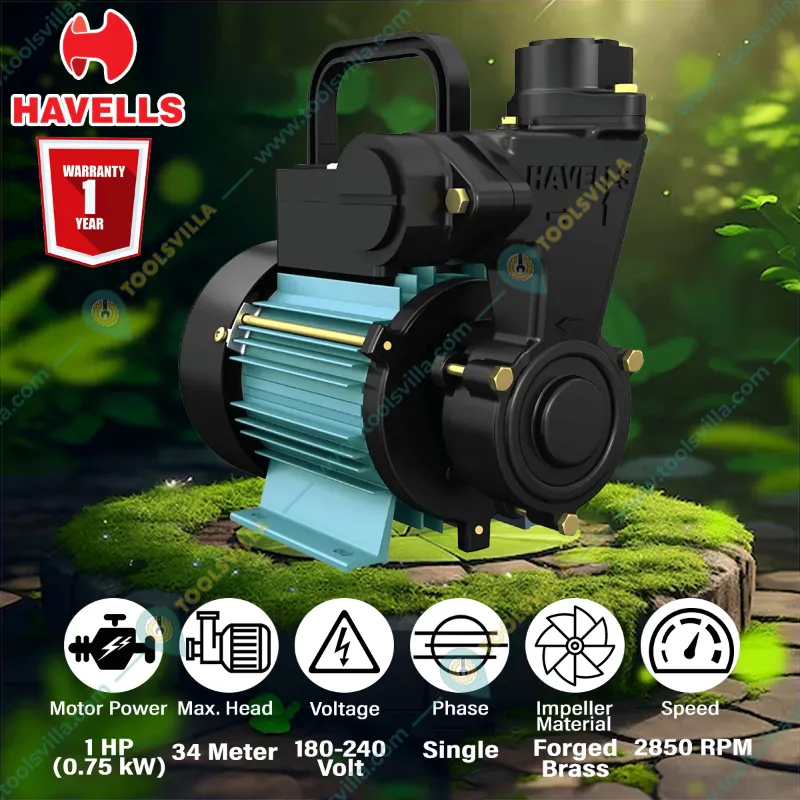

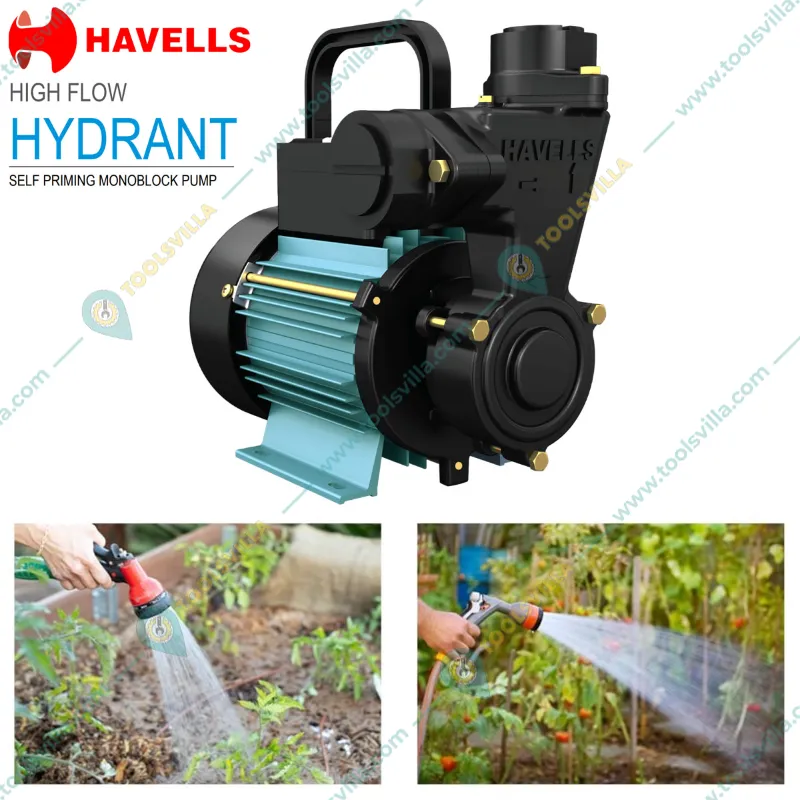

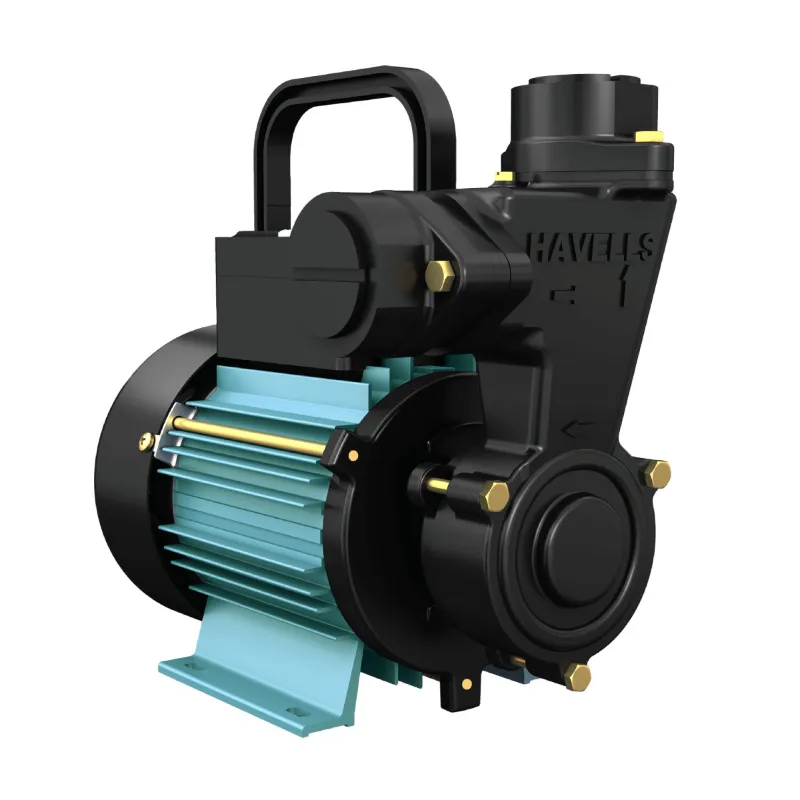

Havells 1 Hp Single Phase Self Priming Monoblock Pump
34m Max. Head, 2700 LPH Max. Discharge
Copper Winding
1 Year Warranty
Country of origin: India
Specification
  • Brand: Havells
  • Power : 1 hp
  • Weight (Approx.) : 7.50 kg
  • Flow Rate : 45 lpm
  • Head : 34 meter
  • Model No. : HYDRANT1
  • Product Type : Self Priming Monoblock Pump
  • Motor Power : 1 HP (0.75 kW)
  • Electricity Connection : Single Phase
  • Voltage Operating Range : 180 to 260 Volt
  • Motor Winding : Copper
  • Head Range : 6 to 34 Meter (19 to 111 Feet)
  • Flow Range : 2700 to 700 LPH (45 to 11 LPM)
  • High Suction With Self Priming : Up to 7.5 Meter (24 Feet)
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  •  Speed : 2850 RPM
  • Cable Length and Size : 0.3 m & 1.0 sq. mm
  • Impeller : Forged brass
  • Operating Water Temperature : Up to 50 °C
  • Direction of Rotating : Clockwise when viewed from fan cover side
  • Motor Body : High quality extruded aluminium
  • Motor Stator : Low watt loss stamping
  • Pump Casing : Cast iron
  • Shaft : C45 (EN8)
Description
A self-priming monoblock pump is a type of pump specifically designed for residential or domestic use that incorporates self-priming capabilities and features a monoblock design. These pumps are typically used for applications such as supplying water to households, gardens, or small irrigation systems.

Features

 :
  • Wide voltage application suitable from 180 V-260 V
  • Motor body: High quality aluminum extruded
  • 50 Hz single phase AC power supply
  • Motor Insulation Class F
  • In-built thermal overload protector (T.O.P.)
  • CED coated cast iron hydraulic parts for corrosion free performance
  • Carbon Steel Shaft
  • Pump Casing: Cast iron FG 200

Applications

 :
  • Apartments
  • bungalows
  • Farm-houses
  • Building construction
  • Gardening
  • Fountains
  • Overhead storage tanks
  • Pressure booster systems
  • Hotels, hospitals
  • Industrial water circulation

WARRANTY :
  • 1 Year Warranty as per Havells policy.

Note : Do not run the pump without water.
