Brand: Havells

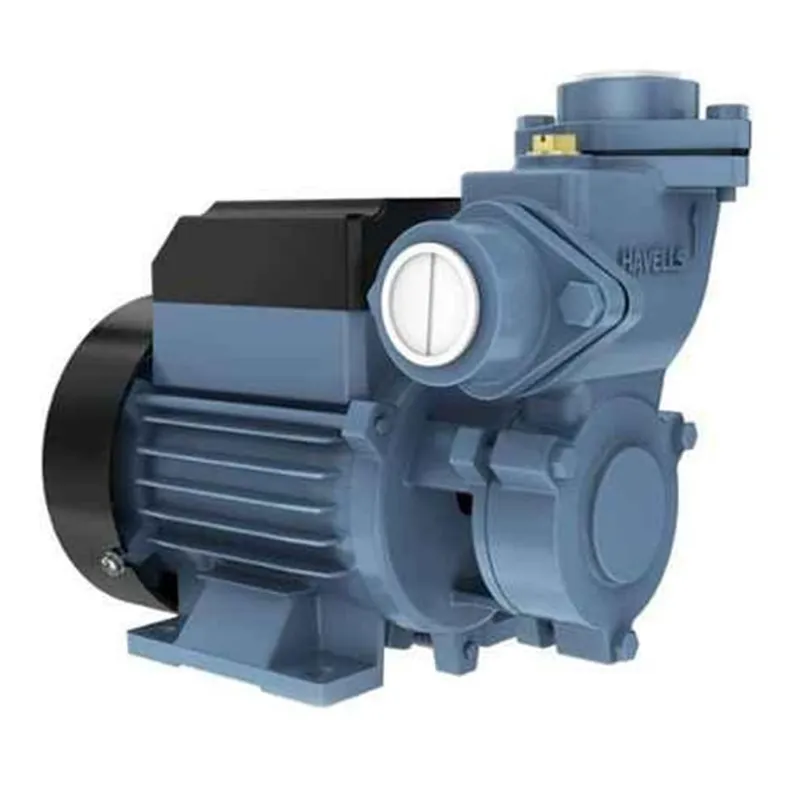

Havells 1 HP Single Phase Self Priming Monoblock Pump, 124ft Max. Head, 3200 LPH (MX-1) - 1 Year Warranty
SKU: AB-HP-20221617
2402 people have viewed this recently
Delivery By: Dec 21 - Dec 23
MRP : ₹10250 ₹7539
26% OFF!
2402 people have viewed this recently Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹7539 (Including GST)
MRP : ₹10250
26% OFF!
Get Extra ₹113 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Havells 1 HP (0.75 kW) Single Phase Self Priming Monoblock Pump
124ft Max. Head, 3200 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specifications
- Brand: Havells
- Power : 1 hp
- Weight (Approx.) : 10.62 kg
- Flow Rate : 53 lpm
- Head : 38 meter
- Model No. : MX-1
- Product Type : Self Priming Monoblock Pump
- Brand : Havells
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Operating Voltage Range : 180 to 240 V
- Max. Working Pressure : 3.8 kg/cm²
- Operating Water Temperature : Up to 65°C
- Motor Winding : Copper
- In built Thermal Overload Protector : Yes
- Dynamically Balanced Rotor : Yes
- Direction of Rotating : Clockwise when viewed from fan cover side
- High Suction with Self Priming : Up to 7.5 meters (25 feet)
- Max. Head Range : 6 to 38 meters (20 to 124 feet)
- No Load Speed : 2900 RPM
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Max. Flow Rate : 53 to 7 LPM (3200 to 420 LPH)
Materials of Construction :
- Motor Body : High-Quality Die Casted Aluminium
- Pump Casing : Graded Cast Iron
- Impeller : Forged Brass
- Motor Stator : Low Watt loss silicon steel lamination
- Shaft : EN-8
Description
A self-priming monoblock pump integrates the motor and pump into a single compact unit, eliminating the need for complex alignments. It's designed to automatically re-prime itself by drawing air from the suction line and mixing it with water, making it ideal for applications where the water level may fluctuate or the pump might run dry temporarily, such as domestic water supply and small-scale irrigation .
Features
:- Energy Efficient Motor : Motors are with F Class Insulation, which ensures that motor does not get burned and works smoothly even at high temperatures.
- Pump Performance : Pumps have higher suction power and give high discharge in its operating range.
Applications
:- Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation.
Warranty :
- 1 year warranty on manufacturing defects only.
Note : Do not run the pump without water.
