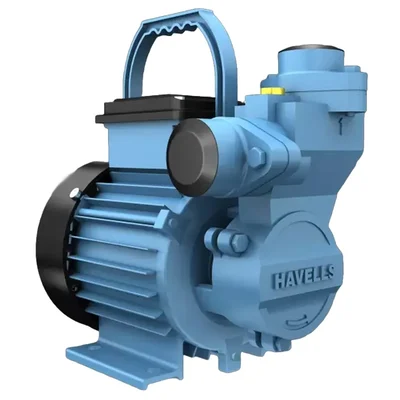

Havells MP1 1 HP Single Phase Monoblock Pump - 131 ft Max. Head and 50 LPM (1 Year Warranty)

Brand: Havells

Havells MP1 1 HP Single Phase Monoblock Pump - 131 ft Max. Head and 50 LPM (1 Year Warranty)

Name: Havells MP1 1 HP Single Phase Monoblock Pump - 131 ft Max. Head and 50 LPM (1 Year Warranty)
Brand: Havells
SKU: AB-HP-20221614
Price: 6459 INR
Availability: OutOfStock
Rating: 5.00 (1 reviews)

SKU: AB-HP-20221614

MRP : ₹8100 ₹6459

20% OFF!

5 people have bought this recently

Get Extra ₹97 OFF on Prepaid Orders

Delivery By: Dec 27 - Dec 29

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹6459 (Including GST)

MRP : ₹8100

20% OFF!

Get Extra ₹97 OFF on Prepaid Orders

Show Similar

Notify Me

Havells (MP1) 1 HP Single Phase Self Priming Monoblock Pump

131ft Max. Head, 3000 LPH Max. Discharge

1 Year Warranty

Country of origin: India

Brand: Havells
Power : 1 hp
Weight (Approx.) : 9.5 kg
Flow Rate : 3000 lpm
Head : 40 meter

Model No. : MP1
Product Type : Self Priming Monoblock Pump
Brand : Havells
Wattage : 0.75 kW
Electricity Connection : Single Phase
Insulation Class : F
Operating Voltage : 200 - 280 V
High Suction with Self Priming : Up to 8 meters (26 feet)
No Load Speed : 2900 RPM
Max. Working Pressure : 4 kg/cm²
Motor Winding : Copper
Operating Water Temperature : Ambient Temperature
Direction of Rotating : Anti-clockwise when viewed from driving end
Cable Length and Size : 0.3 m & 1.5 sq. mm
Pipe Size (Suction x Delivery) : 25 x 25 mm
Head Range : 6 to 40 Meters (20 to 131 Feet)
Flow Rate : 3000 to 800 LPH

Materials of Construction :

Body Material : Cast Iron
Pump Casing : Cast Iron
Shaft Material : EN-8
Impeller : Brass
Motor Stator : CRC Prossed grade stampings

A monoblock pump is a compact and integrated unit where the pump and its motor are combined into a single, self-contained body. They are widely used for various water transfer applications, including domestic water supply, agricultural irrigation, and industrial processes.

Features

Motor Winding : Dual coated F class copper winding wire gives high motor efficiency. Winding wires can withstand high temperature & motor winding is protected from burning.
Pump Performance : Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
Pump Seal : High quality mechanical seal has long life, it completely seals & prevents the water from entering into the motor side, It works for longer period with lesser wear & tear.
Impeller : Brass impeller is very hard, wear & tear of the impeller is highly reduced, this results in better pump performance even after many years, other make of pumps have brass impellers & wear out faster due to particles in water.

Applications

Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation

Warranty :
