Brand: Havells

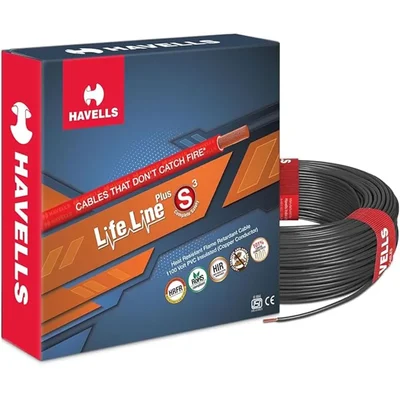

Havells LifeLine Plus 6 sq.mm 90m S3 HRFR Copper Wire 100% Copper Domestic Flame Retardant Cable(Color-black)
SKU: TI-HL-74593-C1-R77
Estimated Delivery By: Sep 23 - Sep 25
MRP : ₹17300 ₹12749
26% OFF!
Estimated Delivery By: Sep 23 - Sep 25 black
₹12749
In stock
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹12749 (Including GST)
MRP : ₹17300
26% OFF!
Get Extra ₹191 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Havells LifeLine Plus S3 6 sq. mm Copper Wire (90m)
rated for up to 1100V
Country of origin: India
Specifications
- Brand: Havells
- Weight (Approx.) : 9.5 kg
- Nominal Conductor Size: 6.0 sq. mm
- Conductor Material: Electrolytic Grade Annealed Pure Copper
- Insulation Material: HRFR PVC (Heat Resistant Flame Retardant)
- Thickness of Insulation: 0.8 mm
- Maximum Conductor Resistance at 20°C: 3.30 Ohm/km
- Voltage Grade: Up to 1100V (1.1 kV) as per IS:694 standards
- Cable Type: Single Core Flexible Energy Cable
- Total Coil Length: 90 Meters
- Approximate Overall Diameter: 4.6 mm
Description
The Havells LifeLine Plus S3 (Model: WHFFDNRA16X0) is a premium, heavy-duty 6 sq. mm single-core electrical wire engineered for high-current applications. Featuring advanced S3 (Safe, Secure, Saving) technology, it is constructed with more than 99.95% pure ETP (Electrolytic Tough Pitch) grade annealed copper to deliver 101% IACS conductivity.
Features
:- S3 Advanced Insulation: Incorporates high-insulation resistance technology that keeps the leakage current down to an ultra-safe 0.01 mA (50 times lower than international standards).
- HRFR Shielding: Heat Resistant Flame Retardant PVC compound safely handles continuous high loads up to 85°C, compared to ordinary 70°C PVC.
- 99.95% Pure ETP Copper: Uses grade-A annealed copper strands that provide maximum current-carrying efficiency and eliminate unexpected voltage drops.
- Eco-Friendly RoHS Compliance: Certified by Bureau Veritas to ensure complete freedom from hazardous heavy metals like lead, mercury, and cadmium.
- Dual Pest Repelling Protection: Specially formulated with anti-termite and anti-rodent chemical properties to stop pests from chewing through conduits.
- High Current Capacity: Designed to withstand continuous high amperages (up to 52 Amps depending on installation type) without heat degradation.
Applications
:- Main Inflow Power Lines: Ideal for serving as the primary incoming power line connecting energy meters to domestic distribution boards.
- High-Load Appliance Circuits: Perfect for safely wiring heavy-consumption appliances including 2-ton+ Air Conditioners, HVAC setups, large geysers, and industrial heaters.
- Sub-Mains Feeders: Extensively used as power routing feeders between floors in commercial complexes and residential buildings.
- Industrial Machine Wiring: Excellent choice for internal electrification panels, power distribution boards, and heavy-duty electric motors.
Usage
:- Ensure the routing is fed smoothly through appropriate PVC or metal conduits to protect the outer layer.
- Avoid twisting or over-bending beyond the specified bending radius during layout to maintain uniform conductor layout.
- Do not combine with inferior low-grade wires at joints to prevent local overheating bottlenecks.
- Ensure structural terminal connections are tightly screwed to completely lower contact resistance.
Maintenance
:- The wire is designed to be virtually maintenance-free due to its anti-pest properties and high heat defense.
- Periodically check the main distribution terminals once a year for loose connections caused by thermal expansion.
- Ensure the electrical conduits are dry and clear of stagnant water leakage spots.
