Brand: Havells

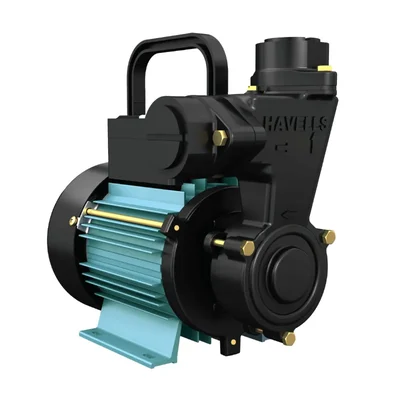

Havells 0.5 HP Single Phase Self Priming Domestic Monoblock Pump, 21m Head, 1900 LPM, 25X25mm (HYDRANT2)-1 Year Warranty
SKU: AB-HP-20221634
3 people have bought this recently
Delivery By: Dec 18 - Dec 20
MRP : ₹4350 ₹3600
17% OFF!
3 people have bought this recently Delivery By: Dec 18 - Dec 20 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹3600 (Including GST)
MRP : ₹4350
17% OFF!
Get Extra ₹54 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Havells 0.5 Hp 1Ph Self Priming Monoblock Pump
21m Max. Head, 1900 LPH Max. Discharge
Thermal Overload Protection
1 Year Warranty
Country of origin: India
Specifications
- Brand: Havells
- Power : 0.5 hp
- Weight (Approx.) : 7.5 kg
- Flow Rate : 32 lpm
- Head : 21 meter
- Model No. : HYDRANT2
- Product Type : Self Priming Domestic Monoblock Pump
- Brand : Havells
- Motor Power : 0.5 HP (0.37 kW)
- Power : 180-260V AC Supply
- Electricity Connection : Single Phase
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Head Range : 6 to 21 Meter (19.7 to 68.9 Feet)
- Discharge Range : 1900 to 450 LPH (32 to 8 LPM)
- Winding type : Copper Winding
- High Suction With Self Priming : Up to 7.5m
- Low Power Consumption : Yes
- Cable length and Size : 0.3 m & 1.0 sq. mm
- Direction of Rotating : Clockwise when viewed from fan cover side
- Working Pressure : 2.1 kg/cm²
- No Load Speed : 2900 RPM
Material Of Construction :
- Pump Casing : Cast iron FG 200
- Impeller : Forged brass
- Shaft : Carbon Steel
- Motor Stator : CRC Processed grade stampings
- Motor Body : High-quality Extruded Aluminium Body
- IP-54 : Protection suitable for outdoor application under sun-roof.
- IP-65 : Protection suitable for outdoor application (Water Ingress Protection)
Description
A self-priming domestic monoblock pump is a type of pump specifically designed for residential or domestic use that incorporates self-priming capabilities and features a monoblock design. These pumps are typically used for applications such as supplying water to households, gardens, or small irrigation systems.
Features
:- Wide voltage application suitable from 180 V – 260 V
- High quality aluminum extruded motor body
- 50 Hz single phase AC power supply
- F Class Motor Insulation
- In-built thermal overload protector (T.O.P.)
- CED coated cast iron hydraulic parts for corrosion free performance
- Carbon Steel Shaft
- Cast iron FG 200 Pump Casing
Applications
:- Used in gardening, farm houses & building construction
- For lifting water to overhead storage tanks
- Pressure booster systems
- Hotels, hospitals and fountains
- Water circulation in Industries
Warranty :
- 1 Year Warranty.
Note :
- Do not run the pump without water.
