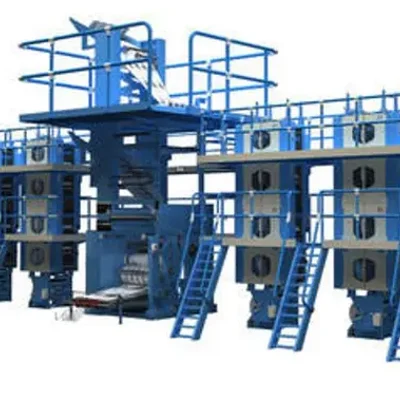

Heavy-Duty Automatic 24 Page Newspaper Printing Machine

Heavy Duty Automatic Newspaper Printing Machine
24 Page Newspaper Printing Machine

Heavy-Duty Automatic 24 Page Newspaper Printing Machine

Features :
24 pages broadsheet newspaper printing machine is a widely accepted machine. Available in various cut-offs and speed, this machine offers the highest ROI and print quality considering low margins in newspaper printing. 24 pages newspaper printing machine can be fitted with the following options

• 48 pages tabloid option.
• Auto reel changer.
• Auto register control.
• Spray dampening.
• UV.
• Stacker.
• Balloon former.
• Ink pumping system.

Specifications :

• Product Type : Newspaper Printing Machine
• Brand : Made in India
• Operation : Automatic
• Plate Width : 889 mm (35 inches)
• Plate Length (Unbent) (Slit Type) : 539 to 609 mm
• Plate Thickness : 0.30 mm
• Blanket Length ('T' Bar type including Bars) : 556 to 626 mm
• Blanket Length (Narrow gap including bars) : 580 to 650 mm
• Blanket Width : 889 mm
• Blanket Thickness (including packing) : 1.65 + 0.45
• Paper Width : 700 to 889 mm
• Reel Diameter (Max.) : 1070 mm (42 inches)
• Printing Length (Max.) 'T' Bar type Blanket : 482 to 552 mm
• Printing Length (Max) Narrow-gap Blanket : 490 to 560 mm
• Paper gsm (uncoated) : 38 to 80 gsm
• Printing Speed : 16000 to 36000 CPH
