Heavy Duty Vertical Bench or Stand Drill 32.5 mm or 1.25 inch Without Motor, (With Gear)

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

Vertical Bench or Stand Drill 32.5 mm or 1.25 inch

Without Motor, with Gear

No Load Speed 2800 RPM

Compatible Motor  1.5 HP - 2 HP

Description

Heavy Duty Vertical Bench or Stand Drill 32.5 mm or 1.25 inch Without Motor, (With Gear)

Description :

• The bench drill is used for heavy-duty drilling and making holes in wood, metal , aluminium and steel etc. Drilling capacity 1.25 inch. Bench pillar drill or pedestal drill as it is called is used mainly in workshops, garages and small industries where very accurate vertical drilling is required.

Features :

• Ergonomically Design
• For Professional Usage
• Light Weight
• Efficient Usage

Specification :

• Product Type : Bench Drill
• Brand : Made in India
• Drilling Capacity : 32 mm
• Spindle Speed : Eight Speed
• Speed Range : 120 to 2800 RPM
• Spindle Nose : MT-4
• Spindle Centre to Column : 250 mm
• Spindle Travel : 150 mm
• Maxi. Distance Spindle to Table : 830 mm
• Maxi. Distance Spindle to Base : 1050 mm
• Working Surface of Base : 360 x 400 mm
• Working Surface of Table : 330 x 330 mm
• Column Diameter : 87 mm
• Machine Base : 560 x 400 mm
• Required Motor : 1.5 HP / 1440 RPM
• V-Belt Size : B-51
• Weight : 90 kg (Approx.)

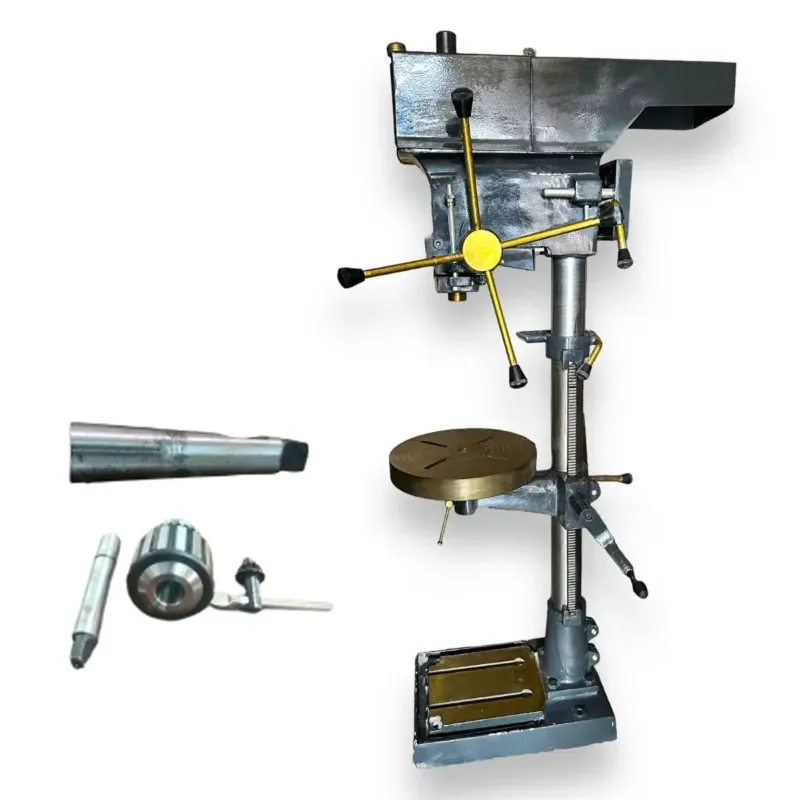

Note - Drill Chuck, Drill Arbor & Drill Sleeve is not included with this machine.
