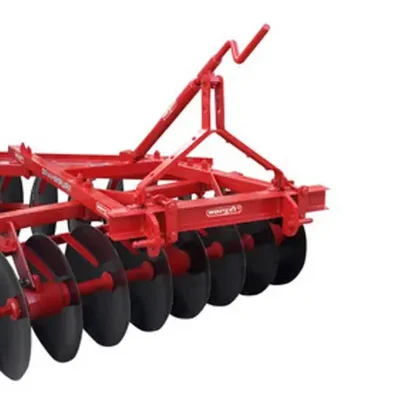

Heavy Duty Mounted Offset Disc Harrow for Superficial Ploughing
Mounted Offset disc harrow is used in open farm working for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains. When mounted on a tractor, becomes a compact unit that can easily be maneuvered into corners or on short head lands. In addition, the implement being easily attached and transportable in top speeds, little time is lost between the shed and the field.
The Mounted Offset Disc Harrow is used in open farm workings for the superficial ploughing, for the shattering of clods, preparation of soil for sowing, burial of organic substances & remains.
To air the soil and to eliminate the weeds.
For breaking the roots.
It has low purchasing and utilization costs both for its wide working width, and for its high speed (from 7 to 15 km/hour).
Angle can be easily adjustable.
It can be used in light and medium soil.
Product Type : Mounted Offset Disc Harrow
Brand : Made in India
Power Required : 40-45 HP
No. of Discs : 14
Frame : 75 x 10 mm angle with 100 x 50 mm channel
Gang Bolt : 32 mm Central Square Solid Bar
Length : 2080 mm
Height : 1150 mm with 560mm Disc, 1200 mm with 610 mm disc
Distance between discs : 225 mm
Mounting : CAT. 1/2 (Optional)
Disc Diameter (in mm) : 560/610 (optional)
Type of discs : Notched in front and plain in rear
