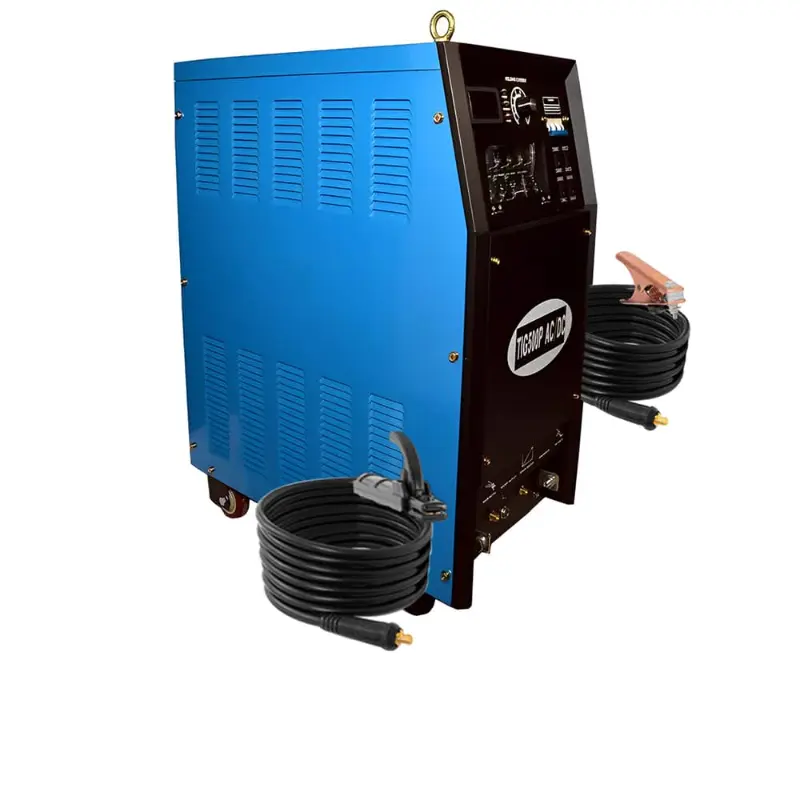

Heavy Duty TIG 500P AC/DC 500A Welding Machine With Module IGBT Technology, 415V

• Model No. : TIG-500P
• Product Type : Welding Machine
• Brand : Generic
• Power Voltage : 3Ph AC415V±15%

• Frequency : 50Hz
• Phase : Three
• Rated Input Current : 18A

• Rated Input Power : 18KVA

• No Load Voltage : 75±5

• Current Adj. Range TIG Mode (A) : 10-500

• Current Adj. Range ARC Mode (A) : 20-500
• Duty Cycle : 60%

• Remote Function : Yes

• Ignite Method : HF

• Efficiency : 85%

• Power Factor : 0.93

• Insulation Class : H

• Protection Grade : lP23

• Pre-flow (S) : 0,5

• Pulse width (%) : (10-90)

• Down Slope (S) : 0-10

• Post flow (S) : 0.1-20

• Pulse frequency (Hz) : 0.5-500

• Overall Dimension : 760x380x820 mm

• Machine Cooling Mode : Air Cooled

• Tungsten Rod Diameter : 1.6-4.0mm

• Base Material : Carbon steel, Stainless steel, Low - alloy steel, Aluminium

• Switching Device : MODULE IGBT

• Weight : 58Kg (Approx)

Features

• AC/DC TIG and ARC (MMA) dual purpose welding mechanism.
• Auto protection of over-voltage and over-current
• Reliable digital inverter pulse mode AC/DC TIG welding, with HF and MMA (Stick) for constant inverter functioning
• Adjustable slop up/down, Gas Pre-flow and Post-flow control for maximum shielding gas protection before and after the weld
• Portable and Lightweight design presents rugged exterior and a flip down visor to protect panel from burns and damage
• Combination of AC and DC TIG permit deep penetration and significantly cut down electrode consumption
• Advanced pulse functions facilitate better control over heat input, resulting less distortion on thin metals
• Light and handy for easy portability
• 2T/4T up and down slope application for welding with torch switch
• Micro pulse disparaging heat affected zone especially on thin material
• International Standard IEC 60974-1& ISO 9001:2015 Certified

Accessories

• Welding Cable
• Earthing Clamp
