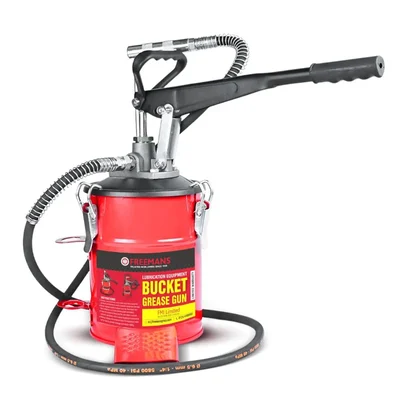

Freemans 5000 PSI High Pressure 10kg Bucket Grease Pump for Automotive & Industrial Lubrication with Variable Handle BP10

• Model Number: BP10
• Maximum Pressure Rating: 5000 pounds per square inch
• Tank Capacity: 10 kilograms
• Hose Length Dimension: 2.2 inches
• Hose Internal Diameter: 1/4 inch
• Head Assembly Construction Material: Aluminium die cast
• Connector Coupler Fitting Material: Steel
• Handle Grip Orientation Type: Pistol grip
• Primary System Fluid Color Profile: Red

Features

• High-Pressure Output: Operates with a powerful capability up to 5000 pounds per square inch to cut through clogged grease nipples.
• Variable Stroke Handle: Offers customizable stroke control to allow precise application volumes depending on the task requirement.
• Massive Bulk Storage: Holds up to 10 kilograms of grease within the internal steel bucket to maximize active operation time between refills.
• Air Release Mechanism: Built-in integrated bleed valve vents internal trapped air to completely eliminate line sputtering and delivery blocks.
• Durable Flow Delivery: Outfitted with a heavy-duty rubber high-pressure hose measuring 2.2 inches by 1/4 inch with robust steel connectors.
• Stability Footrest: Features an integrated base foot support platform allowing single-user stationary pumping leverage.

Applications

• Automotive Workshops: Greasing heavy vehicle chassis joints, universal linkages, leaf spring suspensions, and wheel bearings.
• Industrial Plants: Maintaining manufacturing production conveyor assemblies, hydraulic gear systems, and automated lines.
• Heavy Machinery Fleet: Lubricating construction excavators, grading equipment, cranes, and backhoe pivoting structural points.
• Agricultural Equipment: Packing bearing blocks and rotary assemblies on tractors, combines, and heavy field harvesters.

Usage

• Ensure the 10 kilogram reservoir tank is clean before filling it to maximum capacity with the chosen machinery grease.
• Firmly secure the top lid assembly clamp locks onto the bucket container rim to form an airtight seal.
• Place one foot firmly down onto the integrated metal base footrest to steady the equipment setup on flat floor ground.
• Depress the air release valve fitting momentarily to vent out any residual pockets locked inside the system chamber.
• Connect the professional steel coupler nozzle attachment securely onto the machinery grease fitting nipple.
• Actuate the variable pistol grip handle using short or full pumps to dispense the precise required volume.
