Brand : SPEAR

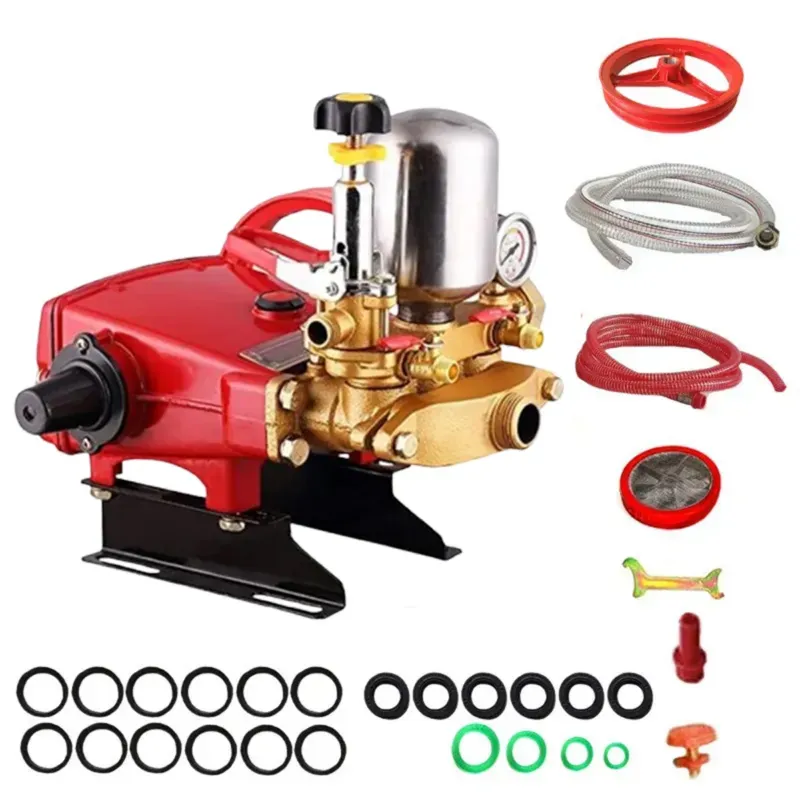

Spear High Pressure HTP 50 Sprayer Pump for Cleaning, Spraying in Agriculture and Car Washing
SKU : TI-SH-35705
MRP :
₹4790
Get Extra ₹72 OFF on Prepaid Orders
Delivery By: Sep 2 - Sep 4
Show Similar
Notify Me
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
High Pressure HTP 50 Sprayer Pump
Country of origin: China
Specification
  • Brand: SPEAR
  • Weight (Approx.) : 10 kg
  • Required Motor : 3 to 5 HP
  • Required Engine : Can Be Attached with Tractors
  • Speed :  800 - 1200 RPM
  • Delivery Output : 40-50 LPM
  • Normal Working Pressure (PSI) : 300-400
  • Body Material : Aluminum Die Cast
  • Pump Material : Brass Coated Cast Iron
  • Pulley Size : 7 Inch (17.7 cm)
  • No. of Cock (Output Connections) : 2
  • Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
  • No. of Piston : 3
  • Pump Oil Capacity : 1 L (20W40)
  • Spray Range (Vertically) : 15 to 25Feet (approx.)
  • Max Hose Pipe Can Be Connect : 200 meter
Note : Colour of the Product may vary
Description
The Spear High Pressure HTP 50 Sprayer Pump is a robust and efficient pump designed for heavy-duty cleaning and agricultural spraying tasks. It delivers a suction capacity of 50 liters per minute at working pressures up to 200 psi (14 bar) and can reach a maximum pressure of 400 psi (28 bar). Equipped with three stainless steel pistons and an oil bath lubrication system, it ensures durable, smooth, and maintenance-friendly operation. The pump is compatible with 3 to 5 HP motors, making it versatile for various applications including car washing, orchards, large farms, and commercial cleaning. Its compact and lightweight design enhances portability, while features like pressure regulation and multiple spray gun compatibility improve spraying efficiency and control. An HTP (High-Pressure Triplex) sprayer pump is a specialized pump used in agricultural and industrial applications to deliver a high-pressure spray of liquid. These pumps are designed to ensure efficient and thorough coverage, making them valuable tools for tasks like pest control, fertilization, and irrigation.

Features

 :
  • High-Pressure Output: HTP sprayers are designed to generate high pressure, ensuring that the spray can reach distant plants and cover a large area quickly and effectively
  • Durability and Longevity: HTP sprayers are built with robust construction and high-quality materials to withstand harsh agricultural environments and frequent use.
  • Versatility: HTP sprayers can handle a variety of liquids, including pesticides, herbicides, liquid fertilizers, and even water
  • Heavy-duty cast iron body for durability
  • Triplex stainless steel pistons with oil bath lubrication
  • Delivers 50 liters per minute suction capacity
  • High working pressure up to 200 psi (14 bar)
  • Supports multiple spray guns simultaneously
  • Compatible with 3 to 5 HP motors

Accessories

 :
  • Suction Hose Pipe (3 Meter)
  • Overflow Hose Pipe (3 Meter)
  • Pulley
  • Filter
  • Tool Kit & Washer
  • User Manual

Applications

 :
Recommended usage :
  • Agricultural spraying of pesticides and fertilizers
  • Cleaning and washing of vehicles like cars and trucks
  • Spraying in orchards, plantations, and large farms
  • Commercial and industrial cleaning tasks
  • Supports simultaneous use of multiple spray guns
  • General high-pressure spraying and irrigation

Usage

 :
  • Mount the motor with suitable engine or electric motor
  • Attach the inlet pipe, overflow pipe, and hose pipe.
  • Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
  • Be sure about safety precautions.
  • Do your work as per your needs.

Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
